PVA-453-34+ - Mini-Circuits

Description: Attenuators SMT Voltage Variable Attenuator, 10000 - 45000 MHz, 50 Ohm

Download PVA-453-34+ Model

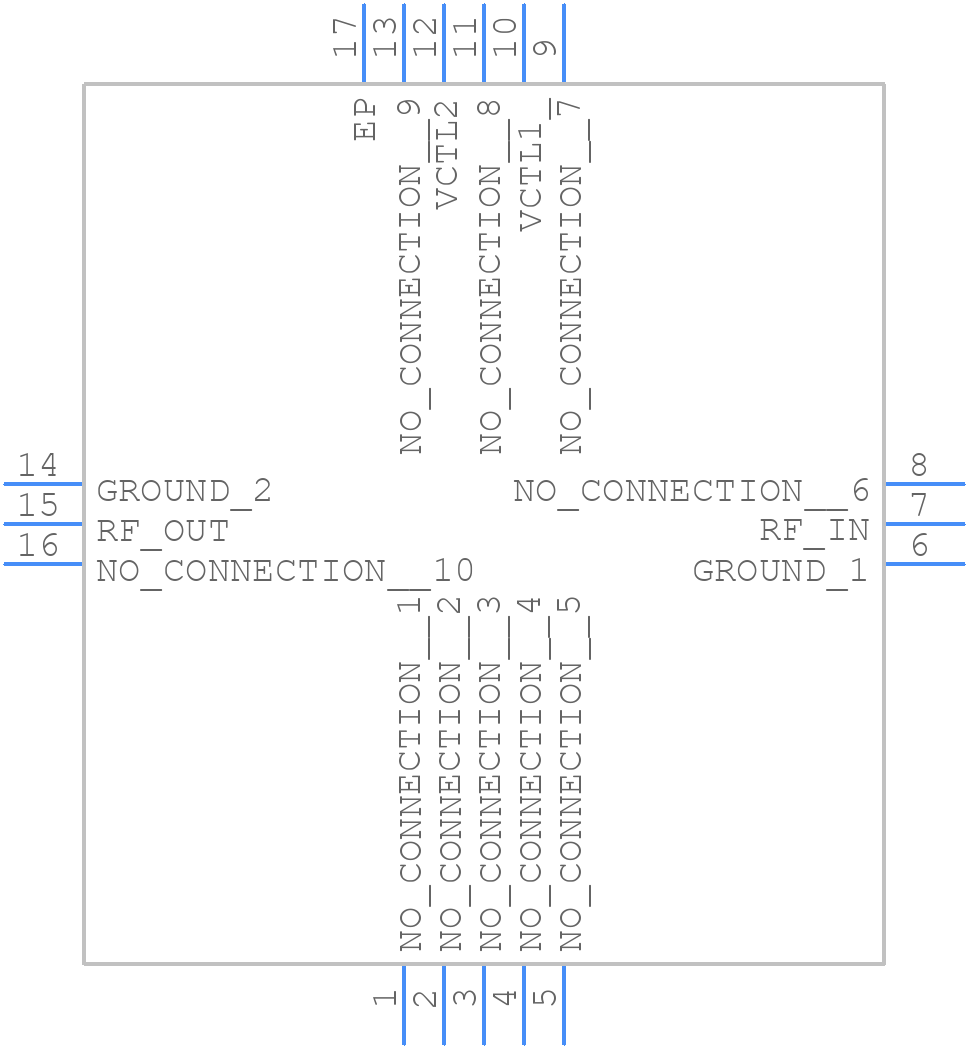

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PVA-453-34+ - Mini-Circuits PCB footprint - Other - Other - PVA-453-34+-2
click to zoom
3D Models
PVA-453-34+ - Mini-Circuits  - 3D model - Other - PVA-453-34+-2
click to zoom

PVA-453-34+ Details

  • Manufacturer Part Number:

    PVA-453-34+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation-Nom:

    28.3 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    45000 MHz

  • Operating Frequency-Min:

    10000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.25
