- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PX0413/08P/PC
- Part Number PX0413/08P/PC
- Manufacturer Bulgin
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - PX0413/08P/PC
- Released Date Feb 20, 2019
- Last Modified Date Oct 23, 2025 9:11 AM UTC
- Pinout / Pin List Click Here (Member Only)
PX0413/08P/PC Details
-
Manufacturer Part Number:
PX0413/08P/PC
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Bulgin
-
YTEOL:
7
-
Additional Feature:
STANDARD: VDE
-
Body Depth:
0.823 inch
PX0413/08P/PC Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified by Bulgin's application notes.
-
Yes, the PX0413/08P/PC is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
-
Yes, the PX0413/08P/PC has an IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
-
The maximum operating temperature range for the PX0413/08P/PC is -40°C to +125°C, as specified in the datasheet.
-
While the datasheet specifies a wire size range of 0.5 mm² to 1.5 mm², it's possible to use smaller or larger wire sizes with proper derating and consultation with Bulgin's technical support.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
PX0413/08P/PC Overview

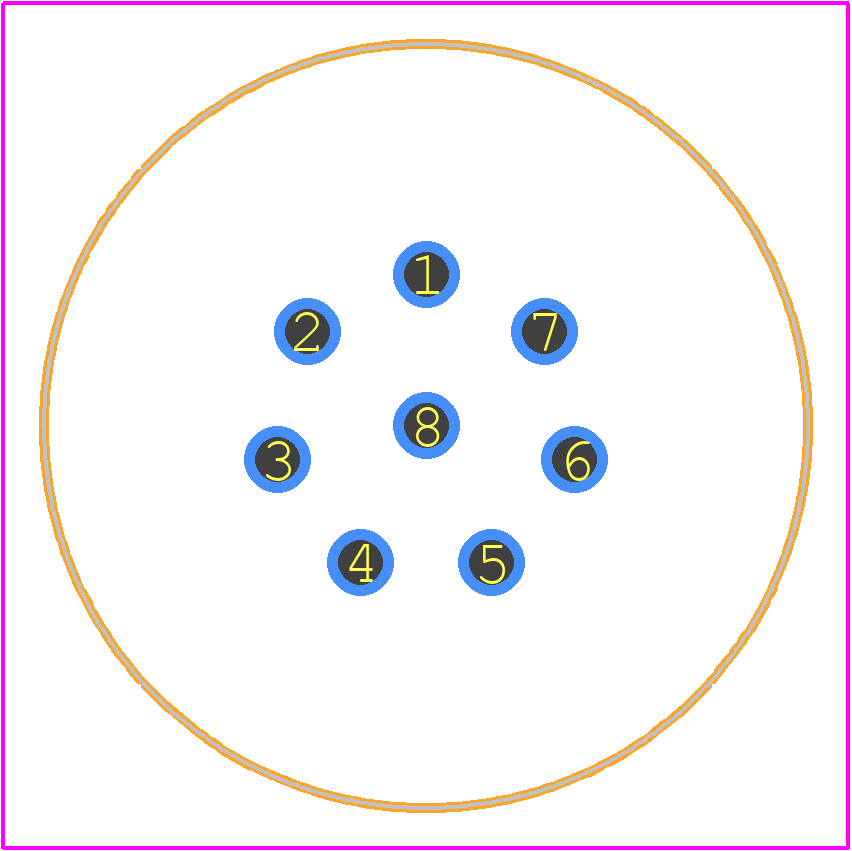

Use the download button to access the PX0413/08P/PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PX041,
or try a keyword search
About Bulgin
Bulgin is a leading manufacturer of environmentally sealed connectors, fuse holders, and switches. They provide high-quality, ruggedized components for a wide range of industries, including industrial automation, transportation, marine, and outdoor electronics.
Bulgin offers a diverse range of products designed to withstand harsh environments and demanding applications. Their portfolio includes circular connectors, data connectors, power connectors, fuse holders, battery holders, switches, and more.
