Part Image

PX3517 - Infineon

Description: Gate Drivers LV IC

Download PX3517 Model

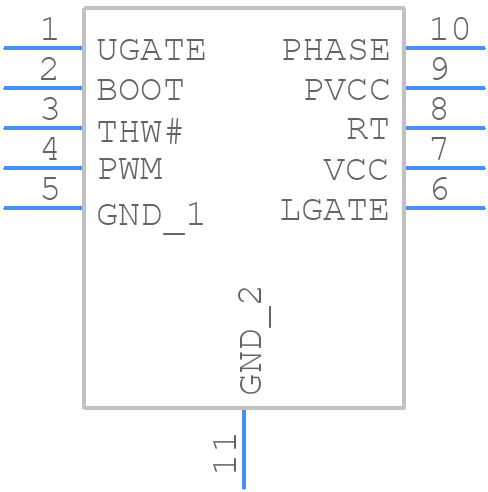

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PX3517 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 10 pin tdson
click to zoom
3D Models
PX3517 - Infineon  - 3D model - Small Outline No-lead - 10 pin tdson
click to zoom

PX3517 Details

  • Manufacturer Part Number:

    PX3517

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TDSON-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    8 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    8 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold/Palladium/Silver (Ni/Au/Pd/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.02 µs

  • Turn-on Time:

    0.015 µs

  • Width:

    3 mm

PX3517 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Use a low-impedance current sense resistor (e.g., 1mΩ) and ensure the sense lines are twisted and shielded to minimize noise. Also, use a high-precision ADC with a high common-mode rejection ratio.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended, with a voltage rating of at least 25V. Ensure the capacitor is placed close to the VIN pin and has a low ESL (Equivalent Series Inductance).
  • Use an external overvoltage protection (OVP) circuit with a zener diode or a dedicated OVP IC. The PX3517 has an internal OVP, but it's recommended to add external protection for added reliability.
  • The maximum ambient temperature for the PX3517 is 85°C. However, the device can operate up to 125°C junction temperature. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PX3517 Overview

Use the download button to access the PX3517 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PX351, or try a keyword search, such as MOSFET Drivers
