PXD60-24WS05 - TDK Lambda

PXD60-24WS05 Details

• Manufacturer Part Number:

  PXD60-24WS05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  PACKAGE-6

• ECCN Code:

  EAR99

• Date Of Intro:

  2020-08-05

• Manufacturer:

  TDK-Lambda Corporation

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, IEC, EN

• Efficiency (Main Output):

  92%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-P6

• Length:

  50.8 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

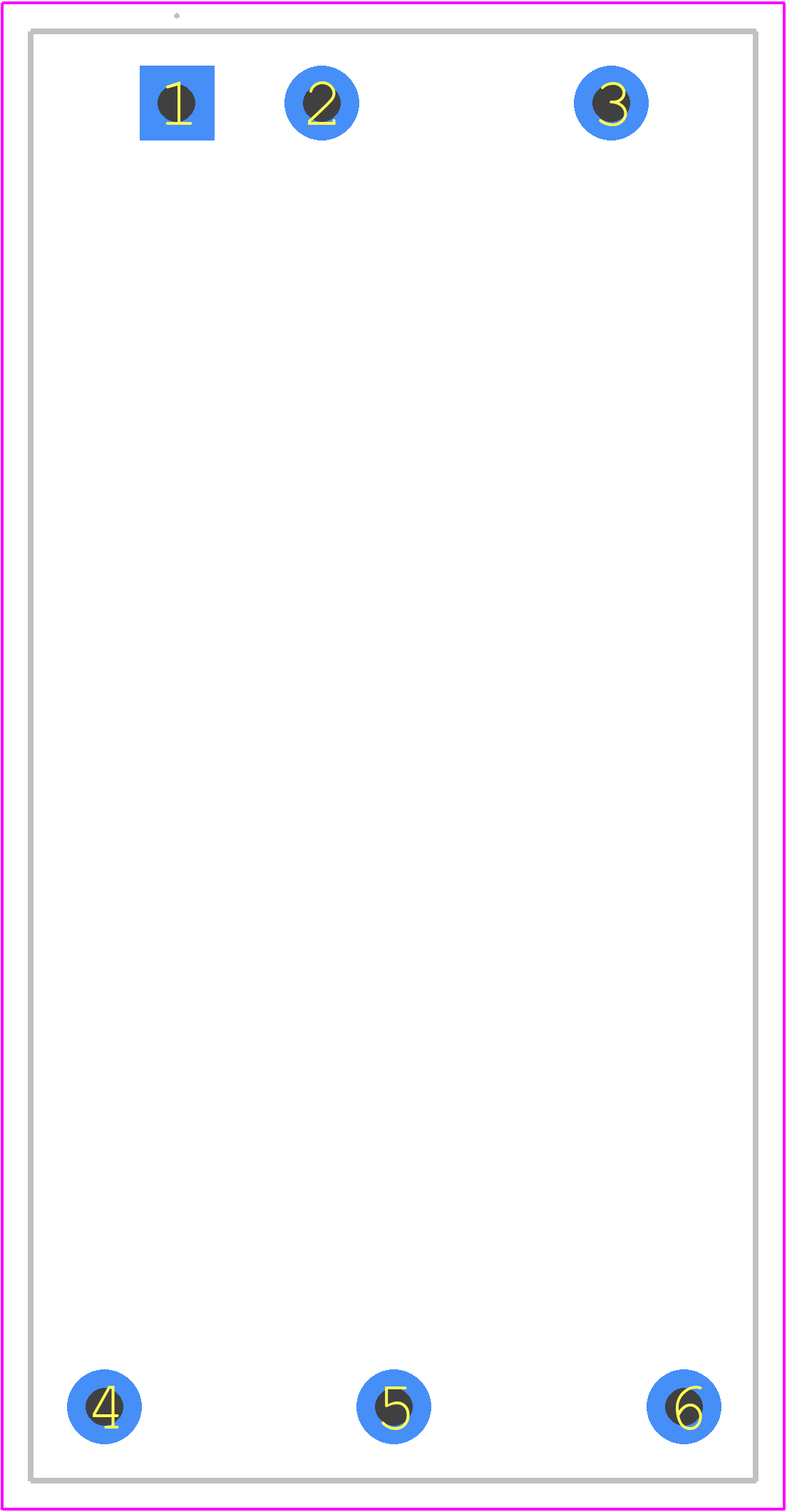

• Number of Terminals:

  6

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  12 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  4.5 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,6LEAD,1.8

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Screening Level:

  IEC/EN/UL 62368-1

• Seated Height-Max:

  10.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  60 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.06 s

• Width:

  25.4 mm
