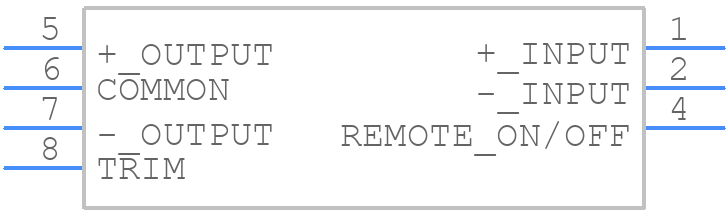

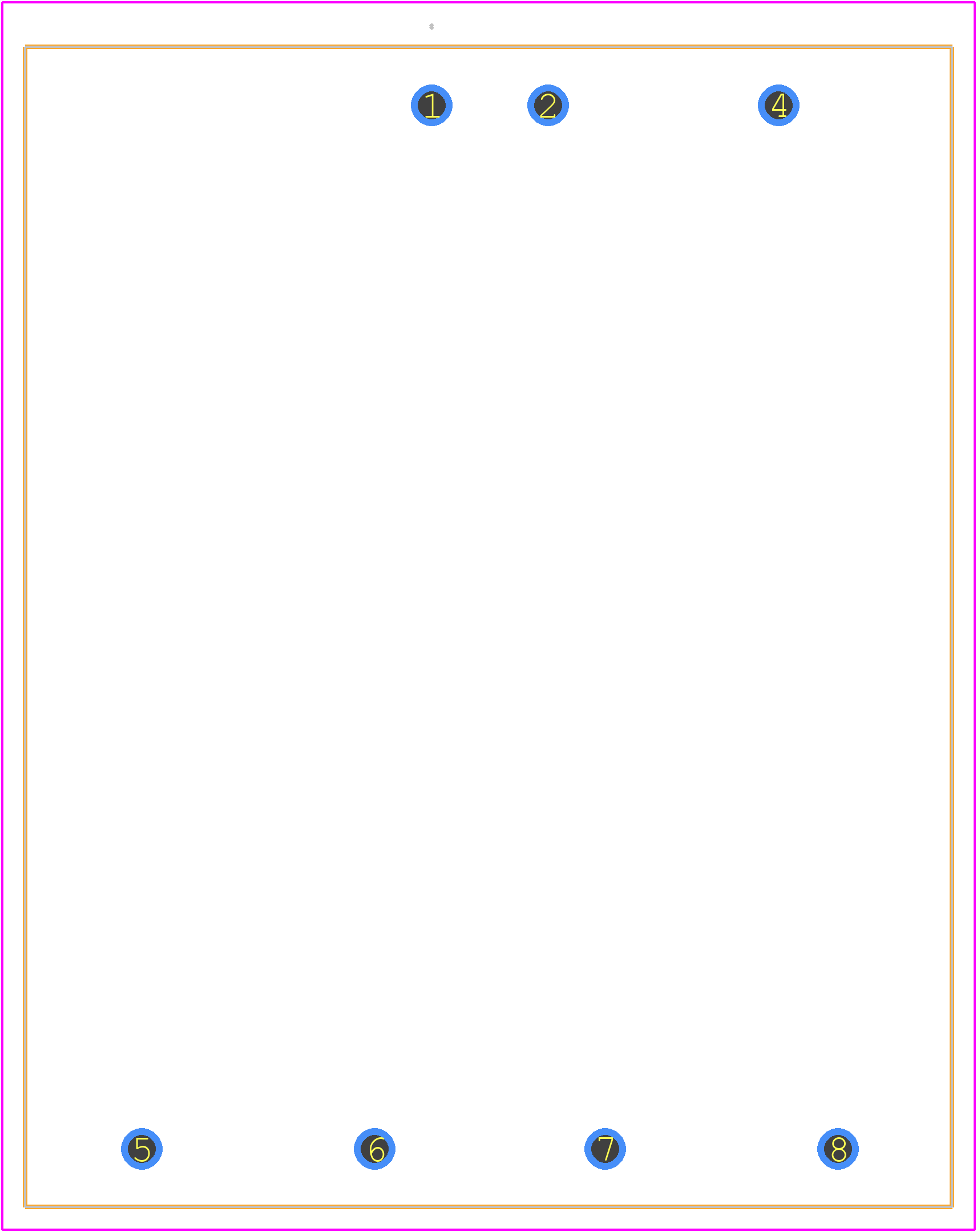

PXE20-24WD05 - TDK Lambda

PXE20-24WD05 Details

• Manufacturer Part Number:

  PXE20-24WD05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  MODULE-8/7

• ECCN Code:

  EAR99

• Manufacturer:

  TDK-Lambda Corporation

• Additional Feature:

  ADDITIONAL -5 V OUTPUT AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE; CSA; EN; UL

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  79%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-P7

• Length:

  50.8 mm

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  4.5 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER CURRENT; OVER VOLTAGE; SHORT CIRCUIT PROTECTION

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  20 W

• Trim/Adjustable Output:

  YES

• Width:

  40.6 mm
