PXF40-24WS12 - TDK Lambda

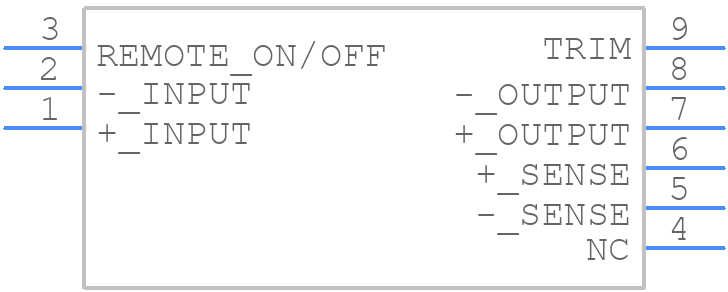

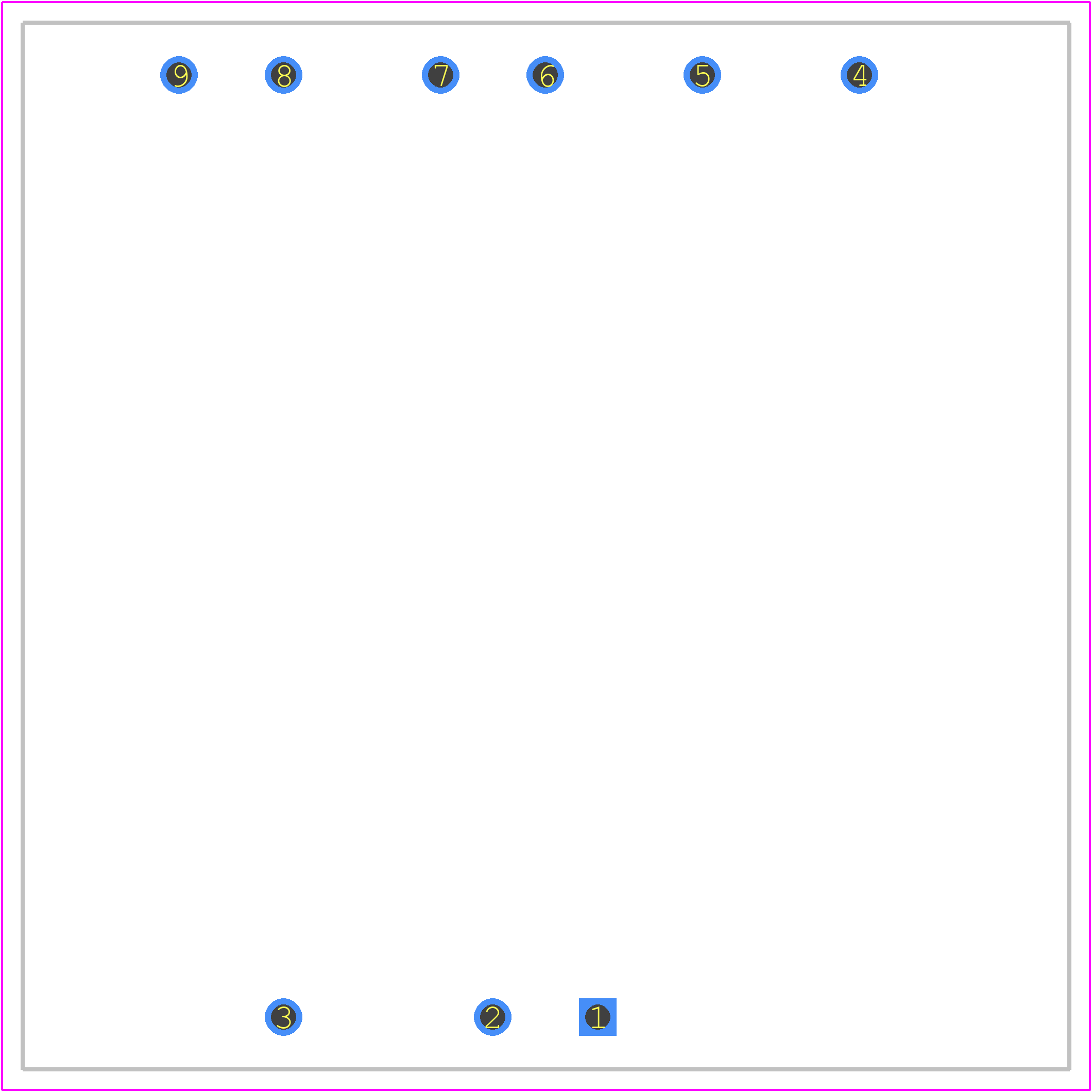

PXF40-24WS12 Details

• Manufacturer Part Number:

  PXF40-24WS12

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  MODULE

• Package Description:

  PACKAGE-8

• Pin Count:

  9

• ECCN Code:

  EAR99

• Manufacturer:

  TDK-Lambda Corporation

• Additional Feature:

  REMOTE SHUTDOWN

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, CSA, EN, CE

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  87%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  S-XDMA-P8

• Length:

  50.8 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  110 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  13.2 V

• Output Voltage-Min:

  10.8 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  SQUARE

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER CURRENT; OVER VOLTAGE; SHORT CIRCUIT PROTECTION

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  10.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  40 W

• Trim/Adjustable Output:

  YES

• Width:

  50.8 mm
