PXG-M15-24WS12 - TDK Lambda

Description: DC-DC Converters, Power module type, Output: 15W, 12V, Isolated type, Option: No Remote On/Off (Standard Version)

Download PXG-M15-24WS12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

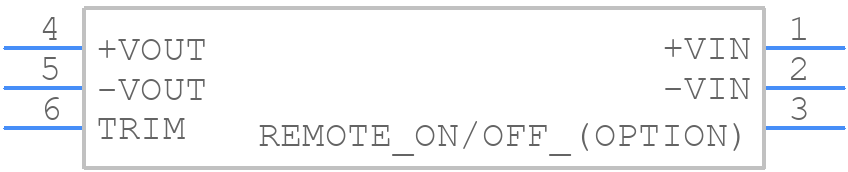

Symbol
PXG-M15-24WS12 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
PXG-M15-24WS12 - TDK Lambda PCB footprint - Other - Other - PXG-M15-24WS24-2
click to zoom
3D Models
PXG-M15-24WS12 - TDK Lambda - 3D model - Other - PXG-M15-24WS24-2
click to zoom

PXG-M15-24WS12 Details

  • Manufacturer Part Number:

    PXG-M15-24WS12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-08-05

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

PXG-M15-24WS12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PXG-M15-24WS12 is -20°C to +71°C, with derating above 50°C.
  • Yes, the PXG-M15-24WS12 is designed to withstand high vibrations and can operate in environments with vibrations up to 10G peak acceleration.
  • The typical efficiency of the PXG-M15-24WS12 is around 85-90% at full load, depending on the input voltage and output load.
  • Yes, multiple PXG-M15-24WS12 units can be paralleled to increase the output power, but it is recommended to consult with TDK-Lambda Corporation or a qualified engineer to ensure proper configuration and thermal management.
  • The MTBF of the PXG-M15-24WS12 is approximately 1.5 million hours at 25°C, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PXG-M15-24WS12 Overview

Use the download button to access the PXG-M15-24WS12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PXG-M, or try a keyword search, such as Power Supply Modules
