PYBE10-Q24-D15 - CUI Inc.

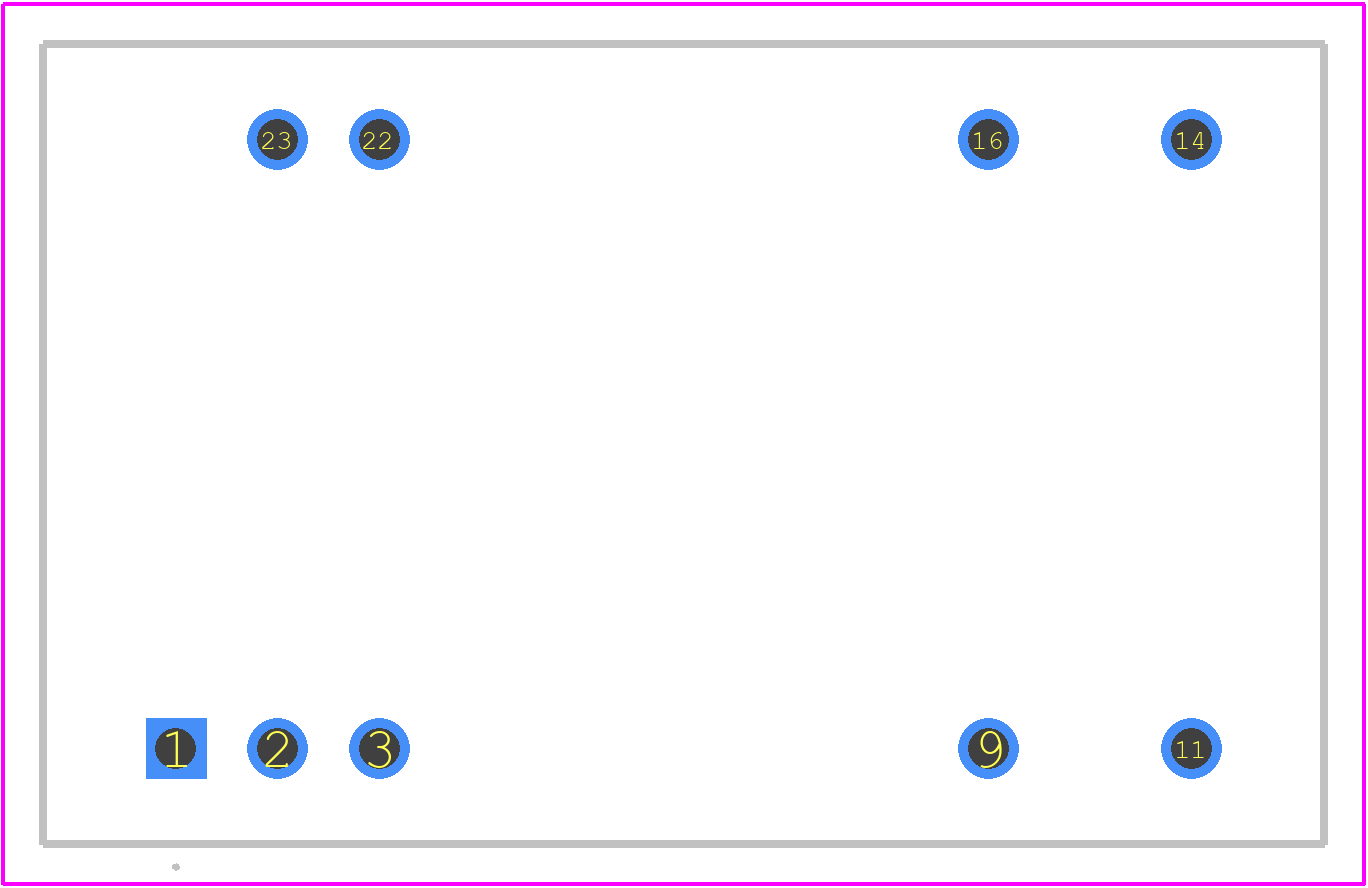

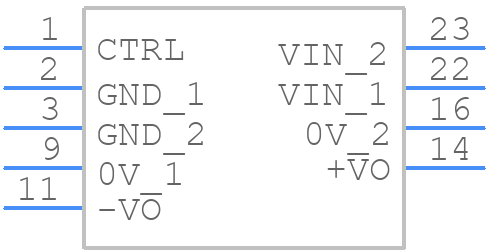

PYBE10-Q24-D15 Details

• Manufacturer Part Number:

  PYBE10-Q24-D15

• Brand Name:

  CUI Inc

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  PACKAGE-24/9

• ECCN Code:

  EAR99

• Manufacturer:

  CUI Inc

• YTEOL:

  7.5

• Additional Feature:

  -15 ADDITIONAL OUTPUT IS AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, IEC

• Efficiency (Main Output):

  87%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-P9

• Length:

  32 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  5%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  9

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.333 A

• Output Voltage-Max:

  15.45 V

• Output Voltage-Min:

  14.55 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER VOLTAGE; OVER CURENT; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.02828 Vrms

• Seated Height-Max:

  11.3 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  350 kHz

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  10 W

• Trim/Adjustable Output:

  NO

• Width:

  20 mm
