Q03-5 - XP POWER

Description: XP Power Q03-5 DC to High Voltage DC Converter 0 → 5 V dc 1.667mA 300V dc

Download Q03-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

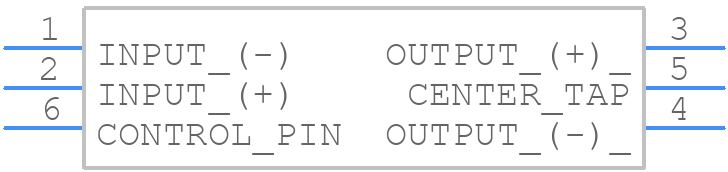

Q03-5 - XP POWER - PCB symbol
click to zoom
PCB Footprints
Q03-5 - XP POWER PCB footprint - Other - Other - Q03-5-1
click to zoom
3D Models
Q03-5 - XP POWER - 3D model - Other - Q03-5-1
click to zoom

Q03-5 Details

  • Manufacturer Part Number:

    Q03-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CSA, EN, IEC, TUV, UL

  • Input Voltage-Max:

    5 V

  • Input Voltage-Min:

    0.7 V

  • JESD-30 Code:

    S-XDMA-P4

  • Length:

    12.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.00167 A

  • Output Voltage-Max:

    300 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    SHORT CIRCUIT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.21 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    0.5 W

  • Trim/Adjustable Output:

    YES

  • Width:

    12.7 mm

Q03-5 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the Q03-5 is 10uF. Exceeding this value may affect the stability of the output voltage.
  • While the Q03-5 has a rated operating temperature range of -40°C to 85°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation.
  • The Q03-5 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific certification requirements for your application and ensure the Q03-5 meets those standards.
  • The recommended input fuse value for the Q03-5 is 1A to 2A, depending on the input voltage and current requirements of your application.
  • Yes, you can parallel multiple Q03-5 modules to increase the output power. However, it's crucial to ensure the modules are identical, and the output voltages are matched to within 1% to prevent uneven current sharing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

Q03-5 Overview

Use the download button to access the Q03-5 schematic symbol, PCB footprint, and 3D model.
