Q06-5 - XP POWER

Description: XP Power Q06-5 DC to High Voltage DC Converter 0 → 5 V dc 833µA 600V dc

Download Q06-5 Model

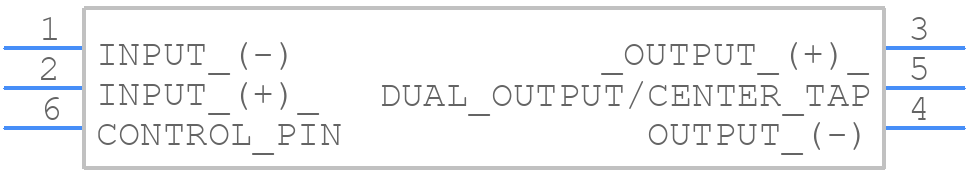

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
Q06-5 - XP POWER PCB footprint - Other - Other - Q06-5-2
click to zoom
3D Models
Q06-5 - XP POWER  - 3D model - Other - Q06-5-2
click to zoom

Q06-5 Details

  • Manufacturer Part Number:

    Q06-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CSA, EN, IEC, TUV, UL

  • Input Voltage-Max:

    5 V

  • Input Voltage-Min:

    0.7 V

  • JESD-30 Code:

    S-XDMA-P4

  • Length:

    12.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.000833 A

  • Output Voltage-Max:

    600 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    SHORT CIRCUIT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.21 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    0.5 W

  • Trim/Adjustable Output:

    YES

  • Width:

    12.7 mm

Q06-5 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
  • Yes, the Q06-5 is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is rigid enough to prevent flexing or resonance that could affect the module's performance.
  • To ensure EMC, XP Power recommends following proper PCB layout and design guidelines, such as keeping sensitive analog circuits away from the DC-DC converter, using proper shielding and grounding, and following the recommended input and output filtering.
  • The maximum allowable capacitance on the output of the Q06-5 is 10,000 μF. Exceeding this value may affect the module's stability and performance.
  • Yes, the Q06-5 can be used in a redundant or parallel configuration to achieve higher power output or to provide redundancy in critical applications. However, it's essential to follow XP Power's guidelines for parallel and redundant operation to ensure proper functionality and reliability.
