The recommended land pattern for the Q4435-BL can be found in Coilcraft's application note AN-20, which provides detailed guidelines for PCB layout and land pattern design.
The Q4435-BL is rated for operation up to 125°C, but it's essential to consider the derating curves provided in the datasheet to ensure reliable performance in high-temperature environments.
Yes, the Q4435-BL is designed to withstand vibrations and shocks according to IEC 60068-2-6 and IEC 60068-2-27 standards. However, it's crucial to follow proper mounting and soldering techniques to ensure the inductor's reliability.
The maximum current rating for the Q4435-BL is 3.8 A, but it's essential to consider the inductor's temperature rise and derating curves to ensure reliable operation.
Yes, the Q4435-BL is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
Q4435-BL Overview

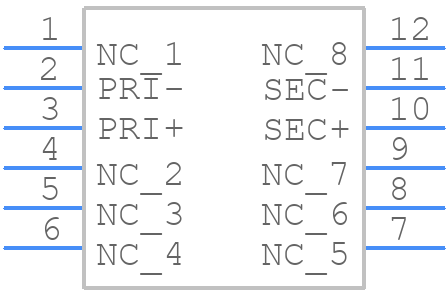

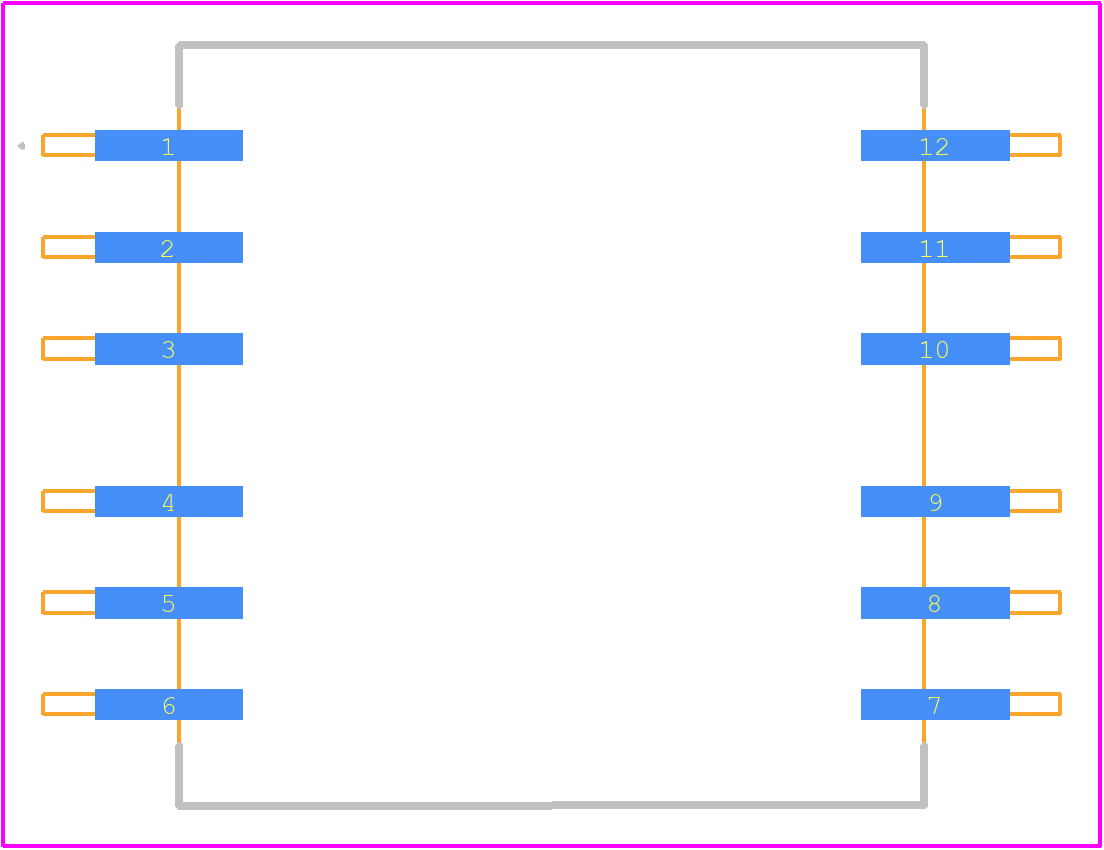

Use the download button to access the Q4435-BL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like Q4435,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
