QAT-12+ - Mini-Circuits

Description: RF Attenuators 12dB 0 Hz ~ 50 GHz 50 Ohms 1.1W 6-TDFN Exposed Pad

Download QAT-12+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

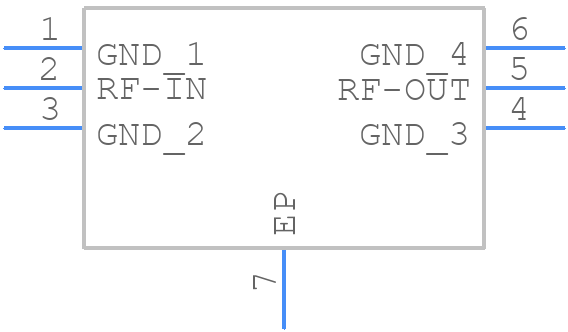

QAT-12+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
QAT-12+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC3000
click to zoom
3D Models
QAT-12+ - Mini-Circuits - 3D model - Small Outline No-lead - MC3000
click to zoom

QAT-12+ Details

  • Manufacturer Part Number:

    QAT-12+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Attenuation-Nom:

    12.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30.41 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    50000 MHz

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • VSWR-Max:

    1.5
