QAT-15+ - Mini-Circuits

Description: Attenuators MMIC ATTENUATOR 15 dB

Download QAT-15+ Model

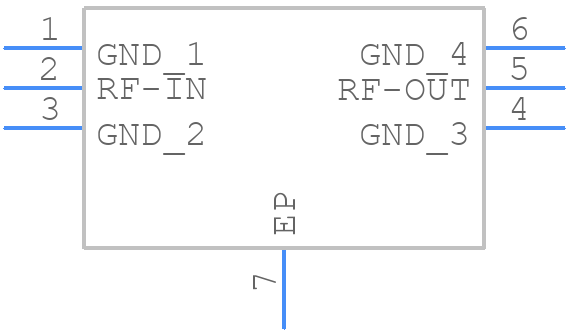

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QAT-15+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - 6 lead qfn
click to zoom
3D Models
QAT-15+ - Mini-Circuits  - 3D model - Small Outline No-lead - 6 lead qfn
click to zoom

QAT-15+ Details

  • Manufacturer Part Number:

    QAT-15+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Attenuation-Nom:

    14.6 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.46 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    50000 MHz

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • VSWR-Max:

    1.34

QAT-15+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The QAT-15+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator tool on their website to help with the design.
  • The QAT-15+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling based on the operating frequency and temperature to ensure reliable operation.
  • Yes, the QAT-15+ is designed to meet the requirements of high-reliability and space-constrained applications. It's built with a ruggedized package and has a high-performance ceramic substrate. However, it's essential to follow proper assembly and soldering techniques to ensure reliable operation.
  • Common issues with the QAT-15+ include poor impedance matching, overheating, and damage from electrostatic discharge (ESD). To troubleshoot, use a vector network analyzer to check the impedance matching, ensure proper thermal management, and follow ESD handling precautions.
