QCN-25+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download QCN-25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

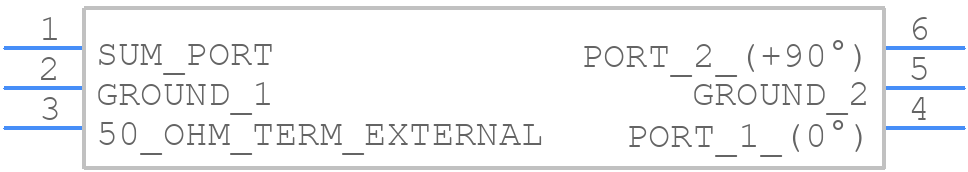

Symbol
QCN-25+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
QCN-25+ - Mini-Circuits PCB footprint - Other - Other - QCN-25+-1
click to zoom
3D Models
QCN-25+ - Mini-Circuits - 3D model - Other - QCN-25+-1
click to zoom

QCN-25+ Details

  • Manufacturer Part Number:

    QCN-25+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FV1206-1, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.2

  • Additional Feature:

    ISOLATION-MIN (DB):18

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    41.76 dBm

  • Insertion Loss-Max:

    0.9 dB

  • Isolation-Min:

    18 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2450 MHz

  • Operating Frequency-Min:

    1350 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.06,40

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.21

QCN-25+ Frequently Asked Questions (FAQs)

  • The maximum power handling of QCN-25+ is 1 watt. Exceeding this power limit may cause damage to the device.
  • The QCN-25+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a 50-ohm impedance match.
  • The operating temperature range of QCN-25+ is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
  • Yes, the QCN-25+ is suitable for high-reliability applications. It is built with high-quality materials and has undergone rigorous testing to ensure its reliability.
  • Yes, the QCN-25+ is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure the device's reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QCN-25+ Overview

Use the download button to access the QCN-25+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QCN-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
