QCV-151+ - Mini-Circuits

Description: 2 Way-90° Power Splitter

Download QCV-151+ Model

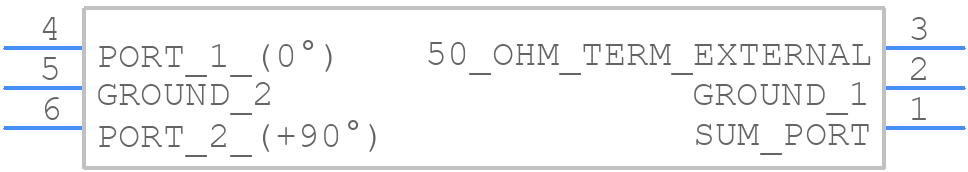

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QCV-151+ - Mini-Circuits PCB footprint - Other - Other - QCV-151+-2
click to zoom
3D Models
QCV-151+ - Mini-Circuits  - 3D model - Other - QCV-151+-2
click to zoom

QCV-151+ Details

  • Manufacturer Part Number:

    QCV-151+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.15

  • Additional Feature:

    ISOLATION-MIN (DB):11

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    40 dBm

  • Insertion Loss-Max:

    1.1 dB

  • Isolation-Min:

    11 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    150 MHz

  • Operating Frequency-Min:

    90 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Equivalence Code:

    SOLCC6,.1,40

  • RF/Microwave Device Type:

    SPLITTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.6

QCV-151+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 50-ohm microstrip line with a 0.5mm to 1.5mm wide trace and a 0.5mm to 1.5mm gap between the center conductor and the ground plane. A 4-layer PCB with a solid ground plane is also recommended.
  • The QCV-151+ requires a positive bias voltage between 1V to 12V, with a typical value of 5V. The bias current should be limited to 10mA or less. A bias tee or a DC block can be used to isolate the DC bias from the RF signal.
  • The QCV-151+ can handle up to 1W of continuous power, but it's recommended to derate the power handling to 0.5W or less for optimal reliability and performance.
  • The QCV-151+ has a nominal impedance of 50 ohms, but it may require impedance matching to achieve optimal performance. A pi-network or a T-network can be used to match the impedance, and the values of the matching components can be calculated using a Smith chart or an impedance matching tool.
  • The QCV-151+ can operate over a temperature range of -40°C to +85°C, but it's recommended to operate it within a temperature range of 0°C to 50°C for optimal performance and reliability.
