QH8MA2TCR - ROHM Semiconductor

Description: 30V Nch+Pch Middle Power MOSFET

Download QH8MA2TCR Model

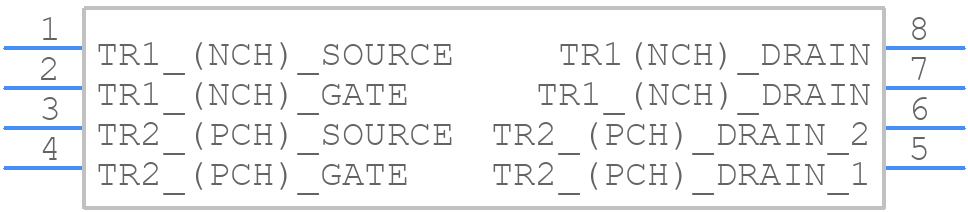

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QH8MA2TCR - ROHM Semiconductor PCB footprint - Other - Other - QH8MA2TCR-2
click to zoom
3D Models
QH8MA2TCR - ROHM Semiconductor  - 3D model - Other - QH8MA2TCR-2
click to zoom

QH8MA2TCR Details

  • Manufacturer Part Number:

    QH8MA2TCR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-07-04

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.3

  • Avalanche Energy Rating (Eas):

    1.5 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    4.5 A

  • Drain-source On Resistance-Max:

    0.0056 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

QH8MA2TCR Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • The device requires a stable input voltage (VIN) and a bypass capacitor (CBYP) to ensure proper biasing. A 10uF capacitor is recommended for CBYP.
  • The maximum power dissipation is 1.5W. Exceeding this limit may cause the device to overheat and reduce its lifespan.
  • The device is rated for operation up to 125°C. However, derating is required for temperatures above 85°C to ensure reliable operation.
  • Handle the device with an ESD wrist strap or mat, and ensure the PCB has ESD protection circuits, such as TVS diodes, to prevent damage.
