QHL300300S12 - XP POWER

Description: Isolated DC/DC Converters - Through Hole DC-DC 300W 180-425VDC INPUT 1/4 BRICK

Download QHL300300S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

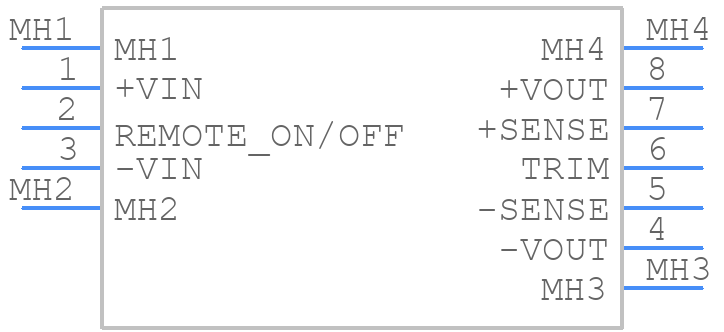

QHL300300S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

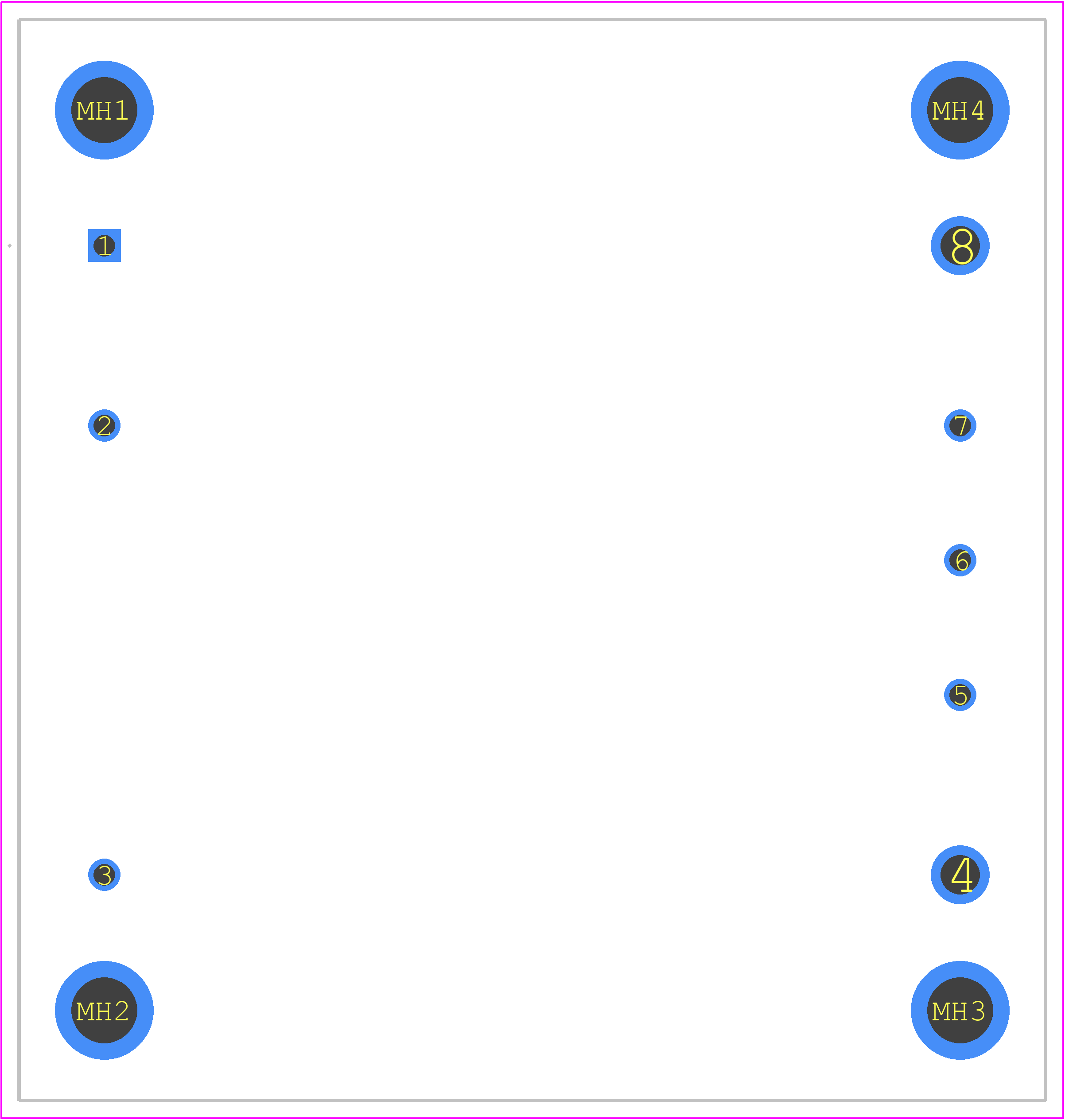

QHL300300S12 - XP POWER PCB footprint - Other - Other - QHL300300S12-1
click to zoom
3D Models
QHL300300S12 - XP POWER - 3D model - Other - QHL300300S12-1
click to zoom

QHL300300S12 Details

  • Manufacturer Part Number:

    QHL300300S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1/2 BRICK PACKAGE-8

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-10-07

  • Manufacturer:

    XP Power

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, UKCA, UL

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    425 V

  • Input Voltage-Min:

    180 V

  • Input Voltage-Nom:

    300 V

  • JESD-30 Code:

    R-PDMA-P8

  • JESD-609 Code:

    e3

  • Length:

    61 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    9.6 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,8LEAD,1.9

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, OVER TEMPERATURE, OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.053025 Vrms

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    300 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.3 s

  • Width:

    57.9 mm

QHL300300S12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the QHL300300S12 is 0.1uF to 10uF, depending on the output voltage and frequency. It's recommended to consult with XP Power's application notes or contact their technical support for specific guidance.
  • The QHL300300S12 has a standard operating temperature range of -40°C to +85°C. However, it can be derated for high-temperature applications up to +100°C with reduced output power. Consult with XP Power's technical support for specific guidance on high-temperature operation.
  • The recommended input fuse rating for the QHL300300S12 is 5A to 10A, depending on the input voltage and system requirements. It's essential to consult with XP Power's application notes or contact their technical support for specific guidance on fuse selection.
  • The QHL300300S12 meets the requirements for 2xMOPP (Means of Patient Protection) and is suitable for medical applications. However, it's essential to consult with XP Power's technical support and ensure that the specific application meets the necessary safety standards and regulations.
  • The QHL300300S12 is not certified for use in hazardous locations. If you need a power supply for a hazardous location, consider XP Power's other products that are specifically designed and certified for such applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QHL300300S12 Overview

Use the download button to access the QHL300300S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QHL30, or try a keyword search, such as Power Supply Modules
