QHL300300S24 - XP POWER

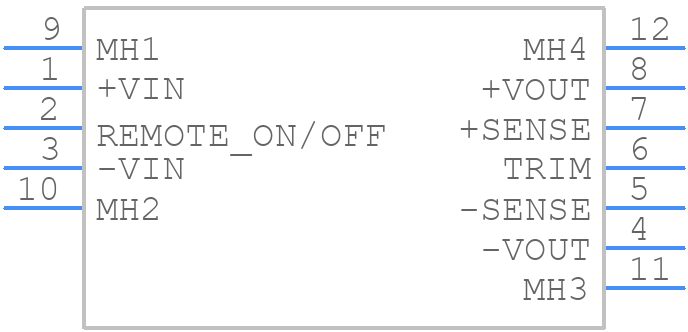

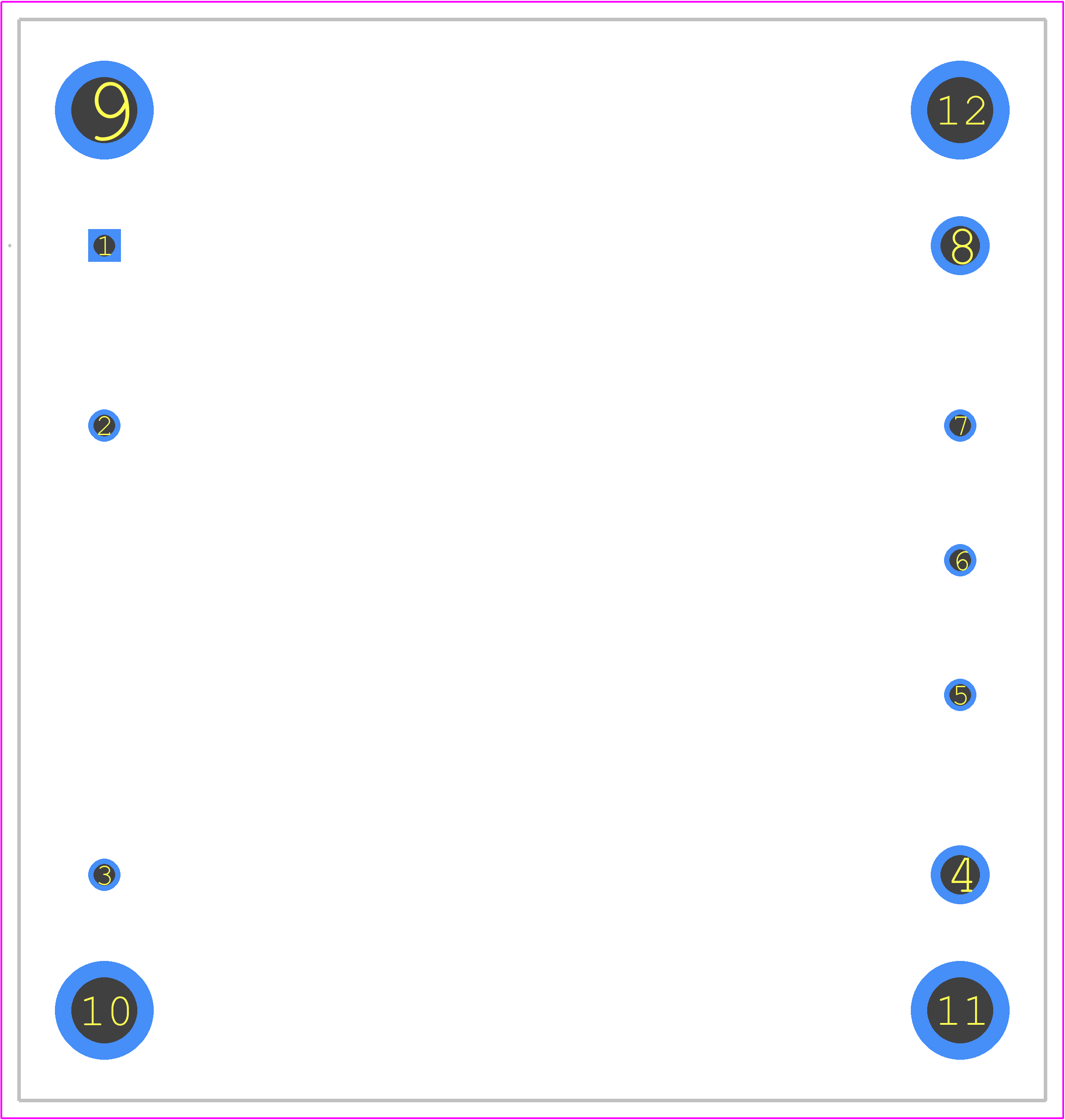

QHL300300S24 Details

• Manufacturer Part Number:

  QHL300300S24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  1/2 BRICK PACKAGE-8

• ECCN Code:

  EAR99

• Date Of Intro:

  2019-10-07

• Manufacturer:

  XP Power

• YTEOL:

  9

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, UKCA, UL

• Efficiency (Main Output):

  90%

• Input Voltage-Max:

  425 V

• Input Voltage-Min:

  180 V

• Input Voltage-Nom:

  300 V

• JESD-30 Code:

  R-PDMA-P8

• JESD-609 Code:

  e3

• Length:

  61 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  12.5 A

• Output Voltage-Max:

  26.4 V

• Output Voltage-Min:

  19.2 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,8LEAD,1.9

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER LOAD, OVER TEMPERATURE, OVER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.08484 Vrms

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Finish:

  MATTE TIN OVER NICKEL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  300 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.3 s

• Width:

  57.9 mm
