QHL75300S12 footprint, schematic symbol and 3D model by XP POWER

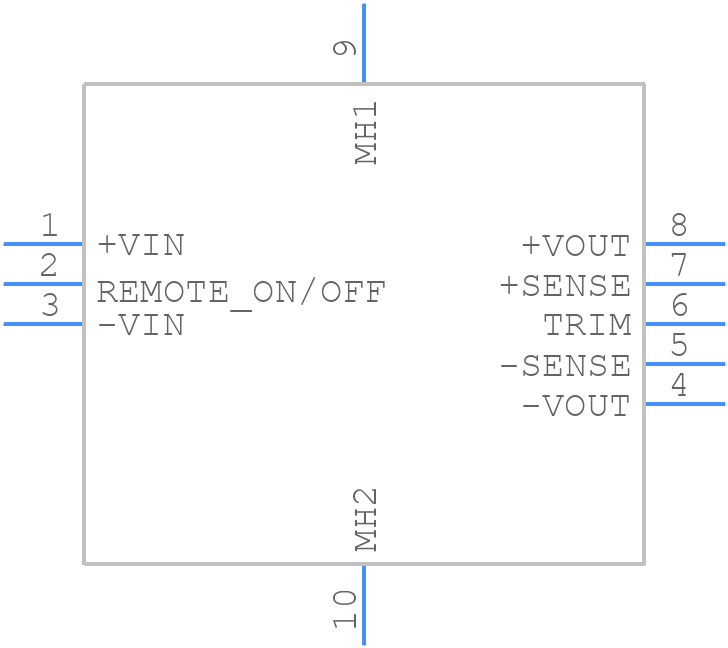

Symbol

click to zoom

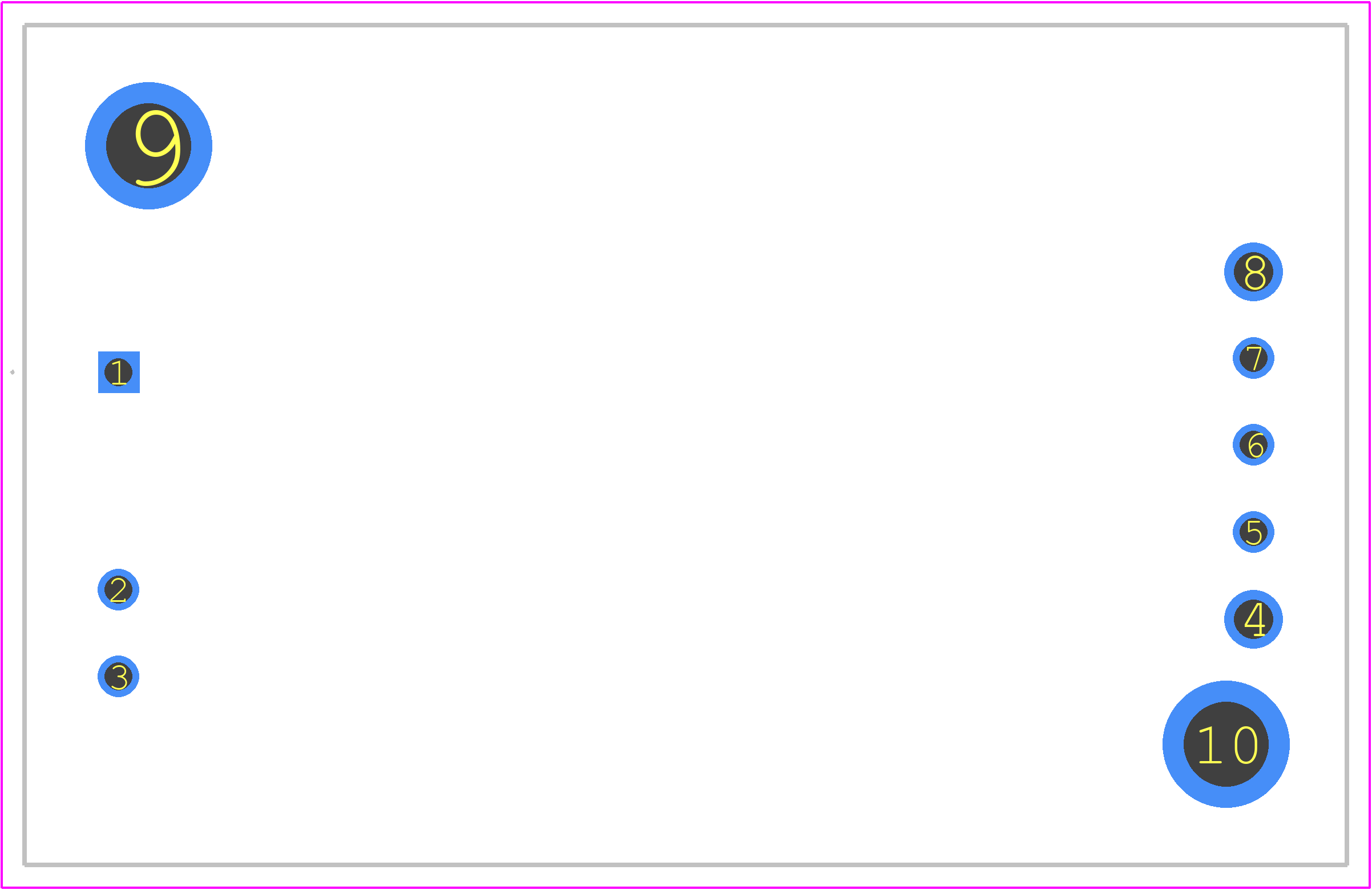

PCB Footprints

QHL75300S12 - XP POWER PCB footprint - Other - Other - QHL75300S12-2

click to zoom

3D Models

QHL75300S12 - XP POWER - 3D model - Other - QHL75300S12-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QHL75300S12
Part Number QHL75300S12
Manufacturer XP POWER
Pin Count 10
Part Category Power Supply
Package Category Other
Footprint Name Other - QHL75300S12-2
Released Date May 7, 2024
Last Modified Date May 7, 2024 4:46 AM UTC
Pinout / Pin List Click Here (Member Only)

QHL75300S12 Details

Manufacturer Part Number:
QHL75300S12
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
1/4 BRICK PACKAGE-8
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
0
Analog IC - Other Type:
DC-DC POWER FACTOR CORRECTION MODULE
Approvals:
CE, EN, UKCA, UL
Efficiency (Main Output):
88%
Input Voltage-Max:
450 V
Input Voltage-Min:
180 V
Input Voltage-Nom:
160 V
JESD-30 Code:
R-PDMA-P8
JESD-609 Code:
e3
Length:
57.9 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6.25 A
Output Voltage-Max:
14.4 V
Output Voltage-Min:
9.6 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,8LEAD,1.9
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER LOAD, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.053 Vrms
Screening Level:
EN/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
75 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
36.8 mm

QHL75300S12 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding. Additionally, the power supply should be installed in a system with a suitable EMC design.
The derating curve for the QHL75300S12 at high altitudes is not explicitly stated in the datasheet. However, XP Power recommends derating the power supply by 1% per 1,000 feet above sea level to ensure reliable operation.
Yes, the QHL75300S12 can be used in a redundant configuration. However, XP Power recommends following the guidelines in the datasheet for parallel operation and ensuring that the power supplies are properly synchronized and configured to prevent damage or instability.
The MTBF for the QHL75300S12 is not explicitly stated in the datasheet. However, XP Power provides an MTBF calculation based on the MIL-HDBK-217F standard, which can be requested from their technical support team.

Trust Checks

Community Provided

System Verified

Community Approved

QHL75300S12 Overview

Use the download button to access the QHL75300S12 schematic symbol, PCB footprint, and 3D model.
