The recommended PCB layout for QJ8040K3TP involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the leads to reduce inductance. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Additionally, consider using a thermally conductive interface material and a heat sink if necessary.
QJ8040K3TP has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Ensure that the device is handled in an ESD-controlled environment, and use ESD-protective packaging and materials.
Yes, QJ8040K3TP can be used in a parallel configuration to increase current handling, but it's crucial to ensure that the devices are properly matched and that the PCB layout is designed to minimize current imbalance and thermal mismatch.
When using QJ8040K3TP in a high-frequency application, consider the device's parasitic inductance and capacitance, which can affect the circuit's performance. Use a layout that minimizes lead inductance, and consider adding decoupling capacitors to reduce high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QJ8040K3TP Overview

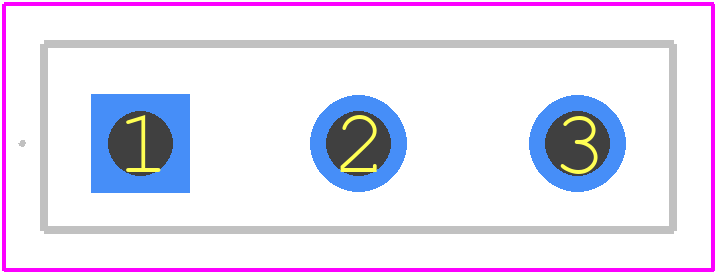

Use the download button to access the QJ8040K3TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QJ804,
or try a keyword search, such as TRIACs
