QK040K5TP - LITTELFUSE

Description: RoHS Compliant • Glass – passivated junctions • Voltage capability up to 1000V

Download QK040K5TP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this QK040K5TP model

Email notifications will be applied after download.

Send part feedback

Symbol

QK040K5TP - LITTELFUSE - PCB symbol

PCB Footprints

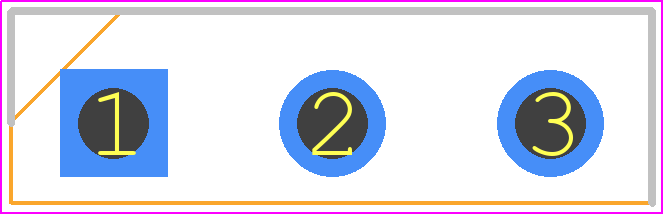

QK040K5TP - LITTELFUSE PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO- 218AC (K Package)

Datasheet Download Datasheet
Stock & Prices Price & Stock for QK040K5TP
Part Number QK040K5TP
Manufacturer LITTELFUSE
Pin Count 3
Part Category Thyristor
Package Category Transistor Outline, Vertical
Footprint Name Transistor Outline, Vertical - TO- 218AC (K Package)
Released Date Jul 9, 2026
Last Modified Date Jul 9, 2026 5:34 AM UTC
Pinout / Pin List Click Here (Member Only)

QK040K5TP Details

Manufacturer Part Number:
QK040K5TP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Littelfuse Inc
YTEOL:
6
JESD-609 Code:
e3
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Matte Tin (Sn)
Time@Peak Reflow Temperature-Max (s):
40
Trigger Device Type:
ALTERNISTOR TRIAC
