The recommended footprint and land pattern for the QK040K7TP can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of the device.
To ensure proper soldering and avoid defects, follow the recommended soldering profile and guidelines outlined in the Littelfuse application note AN9313, and use a solder with a melting point below 260°C.
The QK040K7TP has an operating temperature range of -40°C to 150°C, but it's recommended to derate the device's current rating for temperatures above 125°C.
Yes, the QK040K7TP is designed for high-reliability applications and meets the requirements of AEC-Q200, making it suitable for use in automotive and other high-reliability industries.
Handle the QK040K7TP with anti-static wrist straps, mats, or other ESD protection devices, and store the devices in their original packaging or in a shielded container to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QK040K7TP Overview

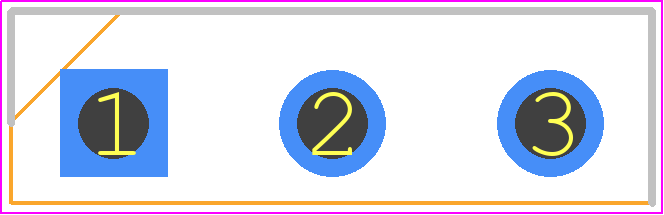

Use the download button to access the QK040K7TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QK040,
or try a keyword search, such as TRIACs
