Part Image

QM55003SR - Qorvo

Description: Mid-Band / Low-Band NB-IoT Transmit Module Supply Voltage, VCC Standby, Idle, Operating Mode 6V Operating Temperature -40 to +105 °C

Download QM55003SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

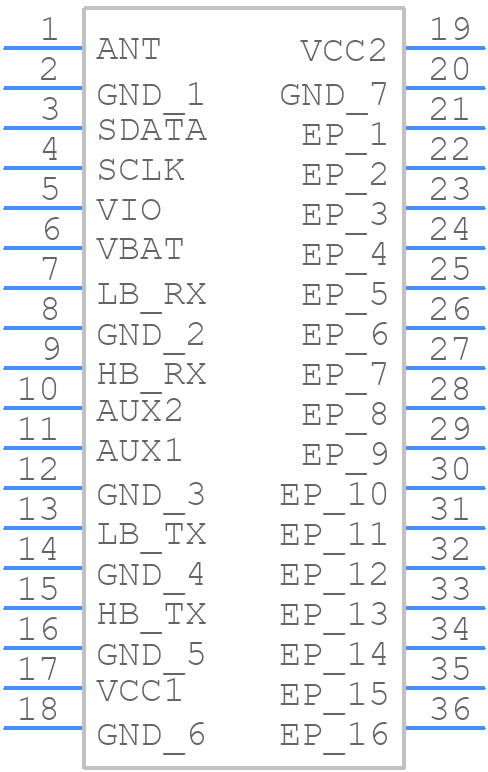

QM55003SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QM55003SR - Qorvo PCB footprint - Other - Other - Module, 20-Pin 4.00 x 4.00 x 0.64 mm_2024
click to zoom
3D Models
QM55003SR - Qorvo - 3D model - Other - Module, 20-Pin 4.00 x 4.00 x 0.64 mm_2024
click to zoom

QM55003SR Details

  • Manufacturer Part Number:

    QM55003SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.G

  • HTS Code:

    8517.62.00.90

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-04-27

  • Manufacturer:

    Qorvo

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QM55003SR Overview

Use the download button to access the QM55003SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QM550, or try a keyword search, such as Other RF/Microwave Devices

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
