Part Image

QM75041SB - Qorvo

Description: 5G Power Amplifier Duplexer Module (PAMiD), 2.496-2.690 GHz, 6.0V, 25dBm, -40°C to 150°C

Download QM75041SB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

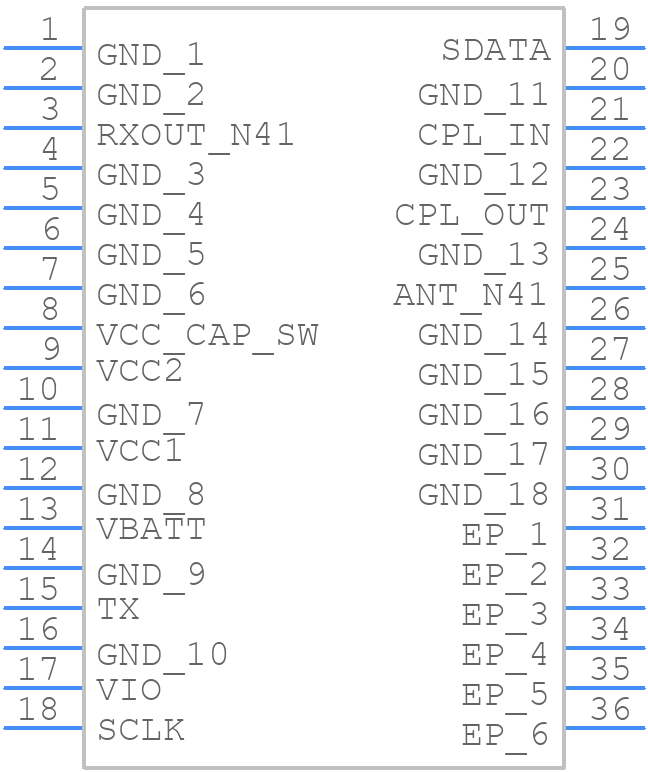

Symbol
QM75041SB - Qorvo - PCB symbol
click to zoom
PCB Footprints
QM75041SB - Qorvo PCB footprint - Other - Other - 30 Pin, 3.0 mm x 5.0 mm x 0.70 mm
click to zoom
3D Models
QM75041SB - Qorvo - 3D model - Other - 30 Pin, 3.0 mm x 5.0 mm x 0.70 mm
click to zoom

QM75041SB Details

  • Manufacturer Part Number:

    QM75041SB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.G

  • HTS Code:

    8517.62.00.90

  • Manufacturer:

    Qorvo

  • YTEOL:

    10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    GOLD OVER NICKEL

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QM75041SB Overview

Use the download button to access the QM75041SB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QM750, or try a keyword search, such as Cellular Telephone Circuits

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
