QMS-026-01-H-D-RA-MG footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

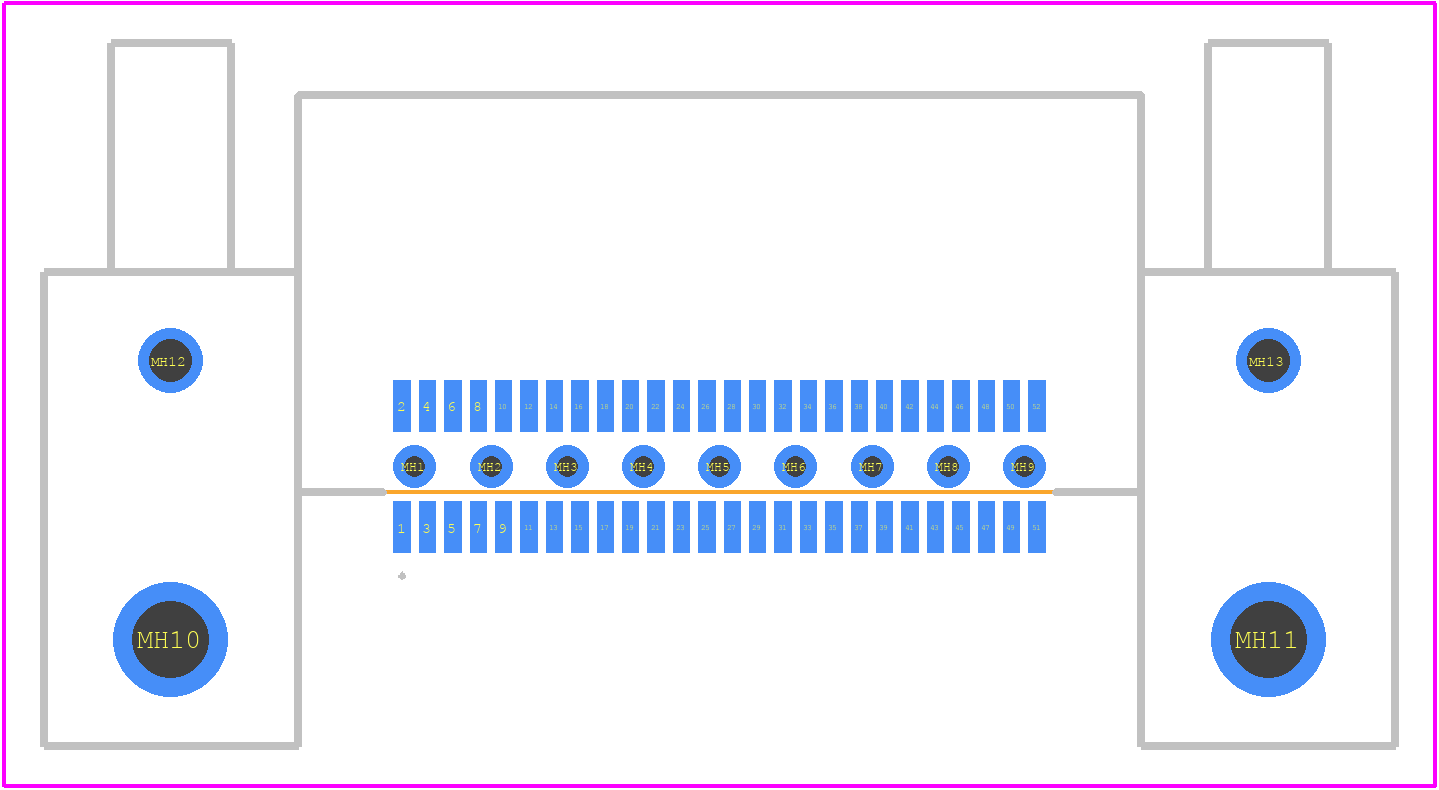

PCB Footprints

QMS-026-01-H-D-RA-MG - SAMTEC PCB footprint - Other - Other - QMS-026-01-H-D-RA-MG-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QMS-026-01-H-D-RA-MG
Part Number QMS-026-01-H-D-RA-MG
Manufacturer SAMTEC
Pin Count 65
Part Category Connector
Package Category Other
Footprint Name Other - QMS-026-01-H-D-RA-MG-1
Released Date May 4, 2023
Last Modified Date May 5, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

QMS-026-01-H-D-RA-MG Details

Manufacturer Part Number:
QMS-026-01-H-D-RA-MG
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8538.90
Factory Lead Time:
3 Weeks, 2 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
Q2
Body Breadth:
0.32 inch
Body Depth:
0.611 inch
Body Length:
1.33 inch
Body/Shell Style:
PLUG
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
AU ON NI
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
Contact Style:
CENTRONIC
Dielectric Withstanding Voltage:
900VAC V
Durability:
500 Cycles
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
Mating Contact Pitch:
0.025 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Option 2:
GUIDE PIN
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.04 mm
Packing Method:
TRAY
Plating Thickness:
30u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2.6 A
Reference Standard:
UL
Terminal Pitch:
0.635 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
52
UL Flammability Code:
94V-0

QMS-026-01-H-D-RA-MG Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure mating and prevent damage to the connector.
Yes, the QMS-026-01-H-D-RA-MG is designed to withstand high-vibration environments. Samtec's ruggedized QMS series connectors are tested to meet the requirements of IEC 61373 Cat 2, which includes vibration testing up to 15 g.
The operating temperature range for QMS-026-01-H-D-RA-MG is -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the QMS-026-01-H-D-RA-MG is compatible with lead-free soldering processes. Samtec's QMS series connectors are designed to meet the requirements of RoHS and WEEE directives, and are suitable for use with lead-free soldering processes.
The mating cycle life of QMS-026-01-H-D-RA-MG is 500 cycles minimum, making it suitable for use in applications where frequent mating and unmating are required.
