Part Image

QN9021/DY - NXP

Description: RF System on a Chip - SoC Ultra Low Power BLE System-on-Chip

Download QN9021/DY Model

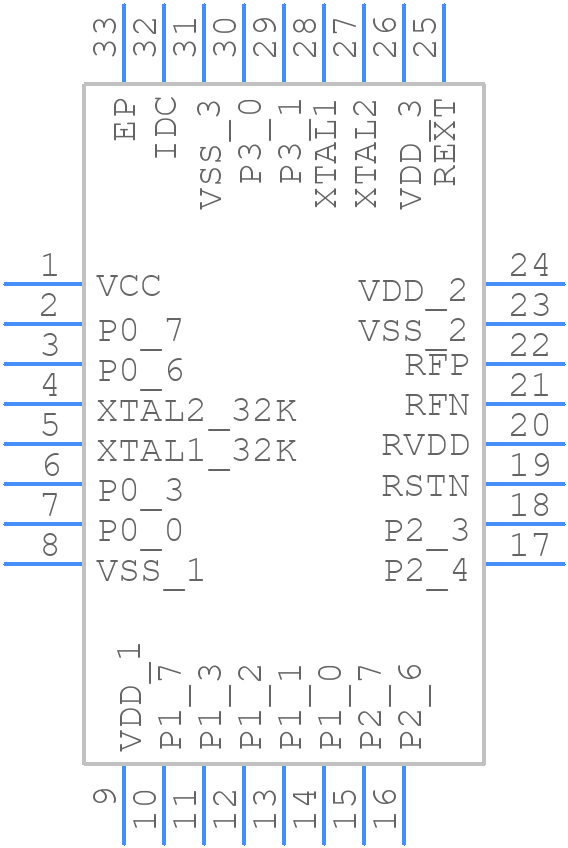

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QN9021/DY - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN32/2022
click to zoom
3D Models
QN9021/DY - NXP  - 3D model - Quad Flat No-Lead - HVQFN32/2022
click to zoom

QN9021/DY Details

  • Manufacturer Part Number:

    QN9021/DY

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HVQFN-32

  • Manufacturer Package Code:

    SOT617-13

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

QN9021/DY Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for QN9021/DY is 1.8V to 3.6V.
  • To configure the QN9021/DY for optimal power consumption, use the low-power modes (e.g., sleep mode, deep sleep mode) and adjust the clock frequency according to your application's requirements.
  • The maximum data transfer rate of the QN9021/DY is up to 2 Mbps.
  • Yes, the QN9021/DY can be used with an external antenna. However, ensure that the antenna is designed for the 2.4 GHz frequency band and meets the impedance matching requirements.
  • To implement secure data transmission with the QN9021/DY, use encryption protocols such as AES-128 or AES-256, and ensure that the encryption keys are securely stored and managed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QN9021/DY Overview

Use the download button to access the QN9021/DY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QN902, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
