QN9090HN/001K - NXP

Description: Bluetooth v5.0 (BLE) SMART SOC 2Mbps 40-Pin HVQFN EP Tray

Download QN9090HN/001K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

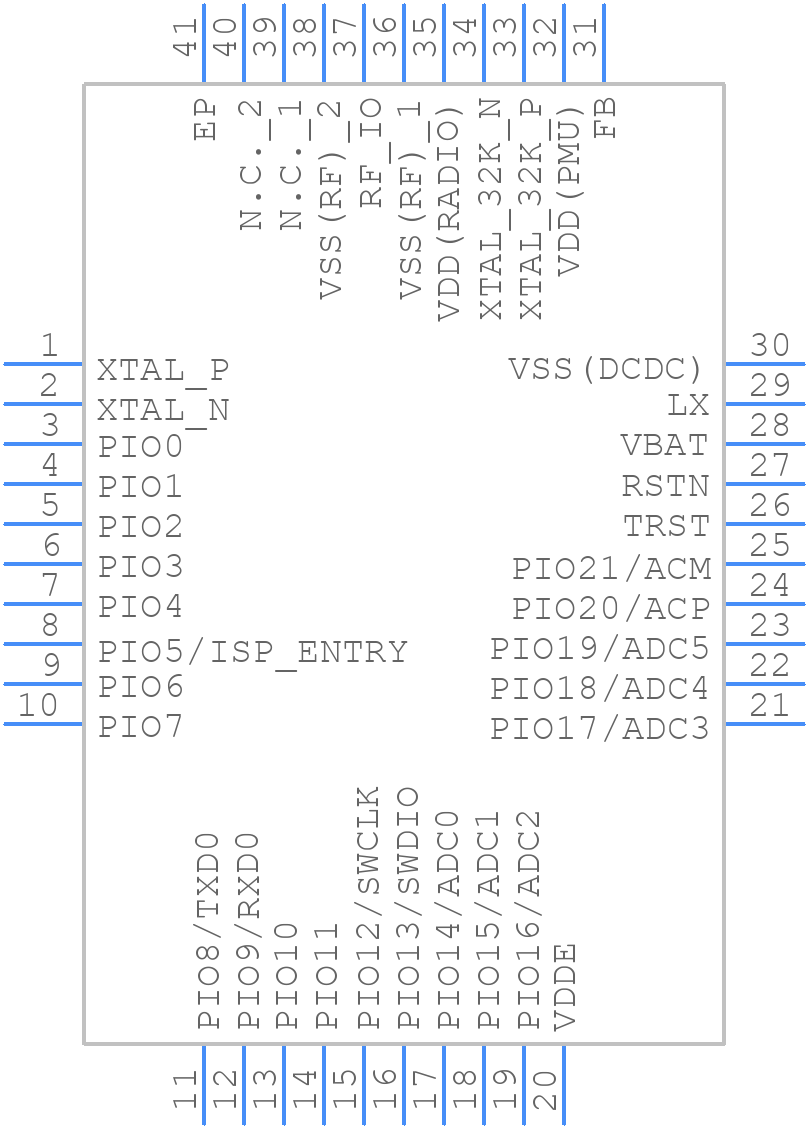

QN9090HN/001K - NXP - PCB symbol
click to zoom
PCB Footprints
QN9090HN/001K - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN40 *
click to zoom
3D Models
QN9090HN/001K - NXP - 3D model - Quad Flat No-Lead - HVQFN40 *
click to zoom

QN9090HN/001K Details

  • Manufacturer Part Number:

    QN9090HN/001K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-40

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Additional Feature:

    Bluetooth LE 5.0

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

QN9090HN/001K Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide in the QN9090HN application note (AN12270). It's essential to follow the guidelines for component placement, routing, and grounding to ensure optimal performance, especially for the RF and antenna sections.
  • Antenna tuning is critical for optimal performance. NXP recommends using a network analyzer to measure the antenna's impedance and adjust the matching network accordingly. The QN9090HN evaluation board provides a tuning guide and a matching network design example.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, NXP recommends derating the device's performance at extreme temperatures. For reliable operation, it's essential to ensure the device operates within the recommended temperature range.
  • The QN9090HN has various power modes, including sleep and deep sleep modes. To implement power management, use the device's power management registers and APIs to control the power modes. NXP provides example code and guidelines in the QN9090HN software development kit (SDK).
  • NXP recommends using a 32.768 kHz crystal oscillator with a load capacitance of 10 pF to 20 pF. The crystal oscillator should be connected to the XTAL_IN and XTAL_OUT pins, and the device's internal oscillator should be enabled using the appropriate register settings.
