QN9090THN/001Z - NXP

Description: RF System on a Chip - SoC QN9090T BLE SoC

Download QN9090THN/001Z Model

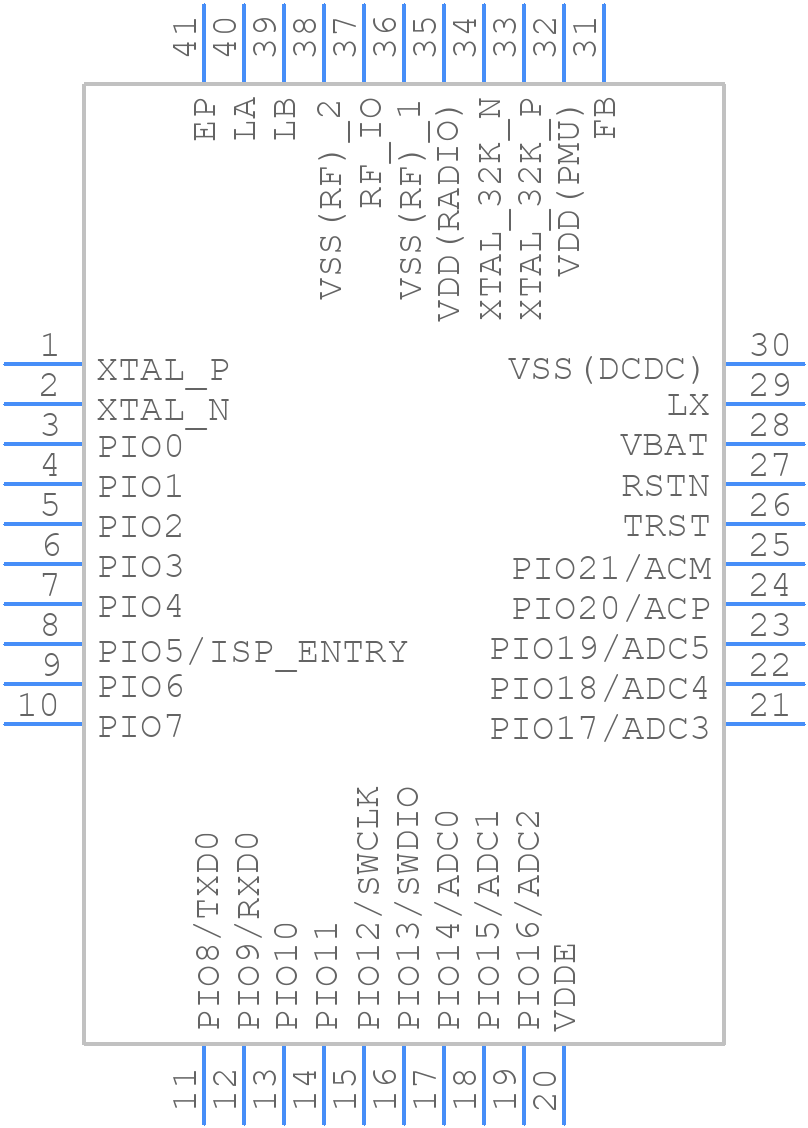

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QN9090THN/001Z - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN-40
click to zoom
3D Models
QN9090THN/001Z - NXP  - 3D model - Quad Flat No-Lead - HVQFN-40
click to zoom

QN9090THN/001Z Details

  • Manufacturer Part Number:

    QN9090THN/001Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-40

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Additional Feature:

    Bluetooth LE 5.0

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

QN9090THN/001Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide in the QN9090 application note (AN12270). It's essential to follow the guidelines for optimal performance, especially for the antenna design and decoupling capacitors.
  • NXP provides a secure boot and firmware update guide in the QN9090 secure boot application note (AN12271). It's recommended to use the NXP MCUBoot utility and follow the guidelines for secure firmware updates.
  • The QN9090 is rated for operation from -40°C to 105°C (ambient temperature). However, the device can tolerate short-term excursions up to 110°C during operation.
  • To optimize power consumption, use the QN9090's low-power modes (e.g., sleep, deep sleep), reduce clock frequencies, and minimize peripheral usage. NXP provides power consumption guidelines in the QN9090 datasheet and application notes.
  • NXP recommends using a 2.4 GHz antenna with a minimum gain of 2 dBi for optimal performance. The QN9090 evaluation board uses a PCB antenna, but external antennas can be used with proper impedance matching.
