Part Image

QPA0363ATR7 - Qorvo

Description: DC to 5000 MHz Operation  Single Positive Voltage Supply  Low Current Draw: 11 mA at +5 V Supply  Output IP3: +20 dBm typical at 1950 MHz  Noise Figure: 2.85 dB Typical at 1950 MHz  Robust 1000 V Class 1C HBM ESD Rating  Lead-free/RoHS-compliant SOT-363 Package

Download QPA0363ATR7 Model

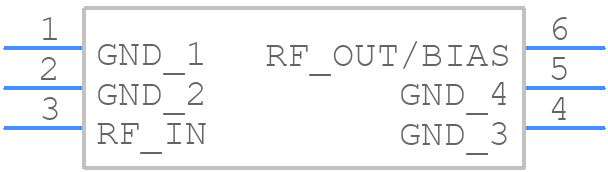

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPA0363ATR7 - Qorvo PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - QPA2463CTR7
click to zoom
3D Models
QPA0363ATR7 - Qorvo  - 3D model - SOT23 (6-Pin) - QPA2463CTR7
click to zoom

QPA0363ATR7 Details

  • Manufacturer Part Number:

    QPA0363ATR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-363, 6 PIN

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15.7 dB

  • Input Power-Max (CW):

    -5 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    5000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP6,.08

  • Power Supplies:

    2.5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    22 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.19

QPA0363ATR7 Frequently Asked Questions (FAQs)

  • Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
  • Qorvo provides a reference design and simulation models for the QPA0363ATR7. Engineers can use these resources to optimize the input and output matching networks for their specific application using simulation software such as ADS or AWR Microwave Office.
  • Qorvo recommends a sequential biasing approach, where the drain voltage is applied first, followed by the gate voltage. The recommended biasing conditions are Vd = 5V, Vg = 2.5V, and Idq = 100mA.
  • Engineers should ensure that the device is operated within its recommended operating conditions, including voltage, current, and power dissipation. The SOA can be calculated using the device's thermal resistance, maximum junction temperature, and power dissipation.
  • Qorvo performs a range of reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing, to ensure the device meets its specifications and reliability requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPA0363ATR7 Overview

Use the download button to access the QPA0363ATR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA03, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
