- Part Number QPA0506
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN 4x4 mm 20L2
- Released Date Jul 13, 2022
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA0506 Details
-
Manufacturer Part Number:
QPA0506
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7.36
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
27.4 dB
-
Input Power-Max (CW):
23 dBm
QPA0506 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize parasitic inductance and ensure optimal performance.
-
Qorvo provides a matching network design tool on their website, which can be used to generate a custom matching network design based on the specific application requirements. Additionally, the datasheet provides general guidelines for input and output matching.
-
While the datasheet specifies an operating temperature range of -40°C to +85°C, Qorvo recommends derating the device's power output by 1 dB for every 10°C above 70°C to ensure reliable operation.
-
Qorvo recommends using a voltage regulator to ensure a stable bias voltage, and to follow the recommended biasing sequence outlined in the datasheet to prevent damage to the device.
-
The typical current consumption of the QPA0506 is around 350 mA, but this can vary depending on the specific application and operating conditions. Qorvo recommends consulting the datasheet and application notes for more detailed information.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA0506 Overview

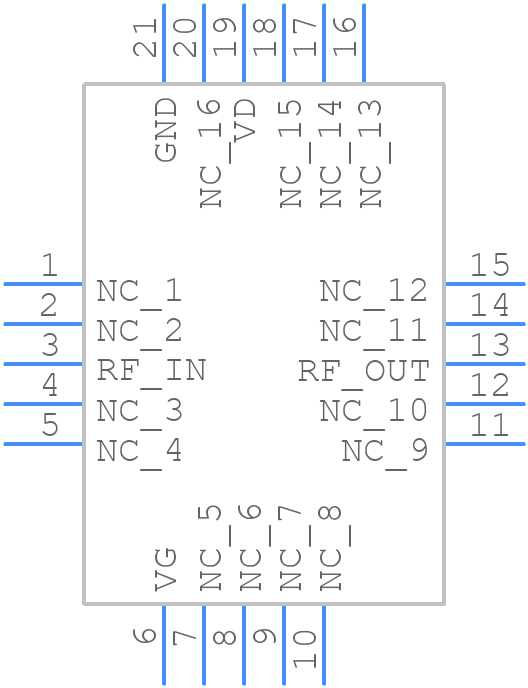

Use the download button to access the QPA0506 schematic symbol, PCB footprint, and 3D model.
