A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the input and output traces. A via-stitched ground plane is also recommended to reduce thermal resistance.
The input and output matching networks should be designed to provide a conjugate match to the device's input and output impedances. The use of a Smith chart or a network analyzer can help optimize the matching networks for maximum gain and efficiency.
The maximum operating temperature for QPA1019TR7 is 125°C. However, the device's performance and reliability may degrade at temperatures above 85°C. It is recommended to operate the device at a temperature below 85°C for optimal performance and reliability.
Thermal runaway can be prevented by ensuring good thermal conductivity between the device and the heat sink, using a thermal interface material (TIM) with high thermal conductivity, and keeping the device's junction temperature below 150°C. A thermistor or thermal sensor can be used to monitor the device's temperature and shut down the device if it exceeds a certain temperature threshold.
The recommended biasing scheme for QPA1019TR7 is a voltage-controlled current source with a voltage regulator to regulate the drain voltage. The gate voltage should be set to a value that provides the desired output power and efficiency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPA1019TR7 Overview

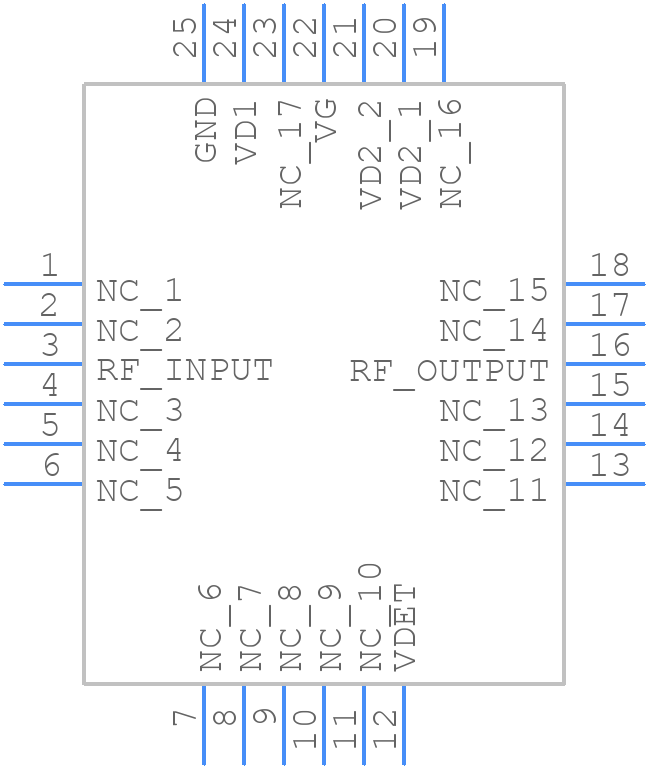

Use the download button to access the QPA1019TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA10,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
