- Part Number QPA1022
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN 4x4 mm 20L2
- Released Date Dec 13, 2021
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA1022 Details
-
Manufacturer Part Number:
QPA1022
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Qorvo
-
YTEOL:
7.94
-
RF/Microwave Device Type:
WIDE BAND HIGH POWER
QPA1022 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The QPA1022 should be placed near the edge of the board to minimize the length of the RF traces. A via-stitched ground plane under the device is also recommended to reduce thermal resistance.
-
To optimize the QPA1022 for low power consumption, ensure that the device is operated at the lowest possible voltage (typically 3.3V) and that the bias current is set to the minimum required for the application. Additionally, consider using a low-dropout regulator (LDO) to reduce power consumption.
-
The maximum operating temperature of the QPA1022 is 125°C. However, it's recommended to operate the device at a temperature below 100°C to ensure optimal performance and reliability.
-
To troubleshoot issues with the QPA1022, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the RF input and output signals using a spectrum analyzer or oscilloscope to identify any issues. Also, verify that the device is properly biased and that the temperature is within the recommended range.
-
Yes, the QPA1022 can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper impedance matching and thermal management.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA1022 Overview

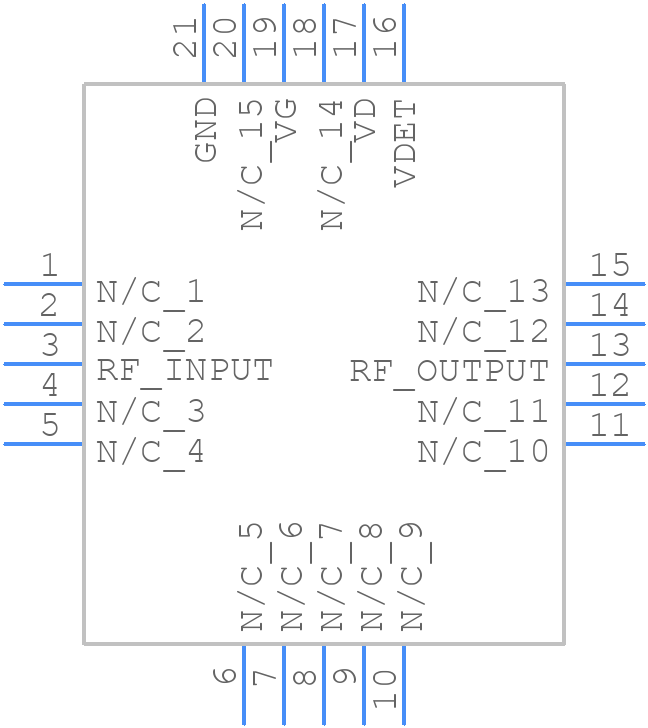

Use the download button to access the QPA1022 schematic symbol, PCB footprint, and 3D model.
