QPA2237 - Qorvo

Description: RF Amplifier .03-2.5GHz 10W PAE >48% SSG >18.5dB

Download QPA2237 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

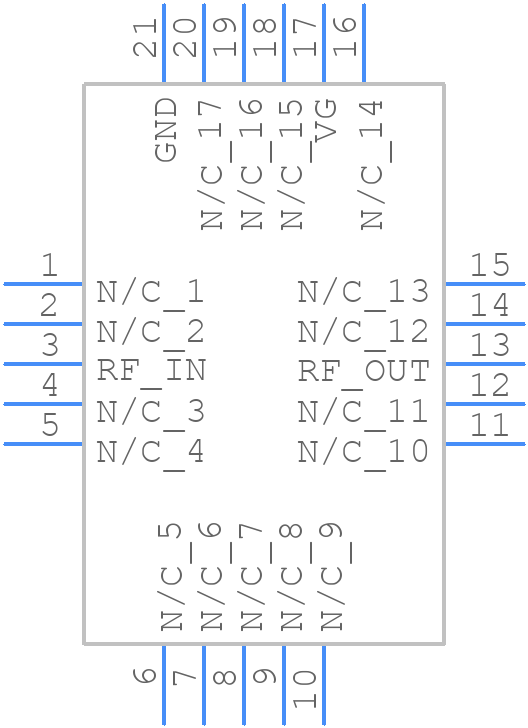

QPA2237 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPA2237 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QPA2237
click to zoom
3D Models
QPA2237 - Qorvo - 3D model - Quad Flat No-Lead - QPA2237
click to zoom

QPA2237 Details

  • Manufacturer Part Number:

    QPA2237

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.73

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19 dB

  • Input Power-Max (CW):

    33 dBm

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    30 MHz

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • VSWR-Max:

    10

QPA2237 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
  • Use the Qorvo simulation models and design tools to optimize the component values and layout for the desired frequency band. Consider the input and output matching networks, and adjust the component values accordingly.
  • The QPA2237 can handle up to 38 dBm of input power. However, the maximum power handling may vary depending on the specific application and operating conditions. Consult the datasheet and application notes for more information.
  • Follow the recommended biasing scheme in the datasheet, and ensure the voltage and current limits are not exceeded. Use a voltage regulator and a current limiter to prevent damage to the device.
  • The QPA2237 has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias and heat sinks if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPA2237 Overview

Use the download button to access the QPA2237 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA22, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
