- Part Number QPA2310
- Manufacturer Qorvo
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPA3070.
- Released Date Jan 2, 2025
- Last Modified Date Feb 27, 2025 5:40 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA2310 Details
-
Manufacturer Part Number:
QPA2310
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
3A001.B.2.A.4
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Qorvo
-
JESD-609 Code:
e4
-
RF/Microwave Device Type:
WIDE BAND HIGH POWER
-
Terminal Finish:
Gold (Au)
QPA2310 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize parasitic effects and ensure optimal performance.
-
The QPA2310 is a broadband amplifier, but it can be optimized for a specific frequency band by adjusting the input and output matching networks. Qorvo provides a design guide (DG-2170) that includes examples of matching networks for different frequency bands.
-
The maximum input power that the QPA2310 can handle is not explicitly stated in the datasheet, but it is typically limited by the device's compression point. As a general rule, the input power should be limited to -10 dBm or less to avoid compression and ensure linear operation.
-
To ensure stability and prevent oscillations, it is essential to follow proper PCB layout and grounding techniques, as well as to use adequate decoupling capacitors and biasing resistors. Additionally, the QPA2310 has a built-in stability network that can be adjusted to optimize stability.
-
The typical noise figure of the QPA2310 is around 2.5 dB, but it can vary depending on the frequency, temperature, and operating conditions. Qorvo provides a noise figure plot in the datasheet that shows the typical noise figure vs. frequency.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA2310 Overview

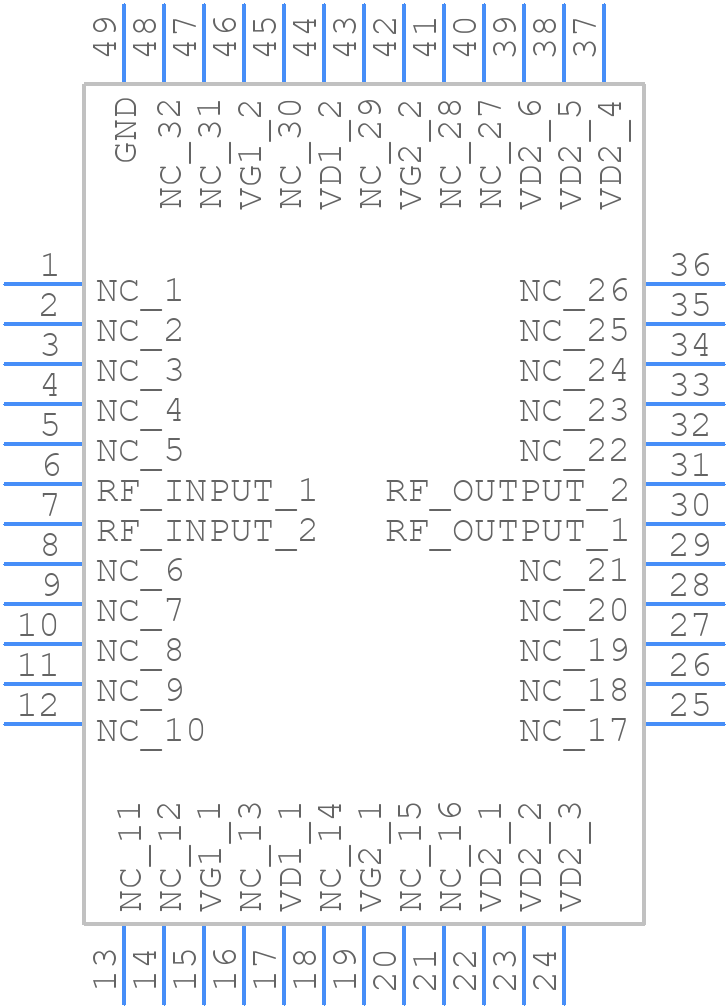

Use the download button to access the QPA2310 schematic symbol, PCB footprint, and 3D model.
