- Part Number QPA2598
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN 4x4 mm 20L---
- Released Date Sep 29, 2022
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA2598 Details
-
Manufacturer Part Number:
QPA2598
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-20
-
ECCN Code:
EAR99
-
Factory Lead Time:
20 Weeks
-
Date Of Intro:
2019-12-17
-
Manufacturer:
Qorvo
-
YTEOL:
7.58
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
QPA2598 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
-
Use a bias tee or a separate bias supply to ensure a stable voltage supply. Adjust the bias voltage (Vd) to achieve the optimal quiescent current (Idq) for maximum efficiency. Typically, Idq is around 100-150 mA.
-
The maximum input power that QPA2598 can handle is +10 dBm. Exceeding this limit may cause compression, distortion, or even damage to the device.
-
Use a stabilizing network (e.g., a resistor and capacitor in series) between the output and ground to prevent oscillations. Ensure that the output is properly matched to the load impedance.
-
Use a heat sink or a thermal pad to dissipate heat. Ensure good thermal contact between the device and the heat sink. Keep the ambient temperature below 85°C for optimal performance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA2598 Overview

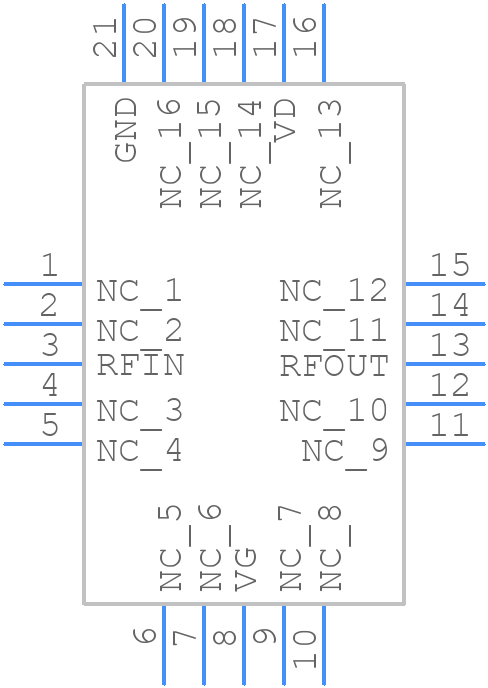

Use the download button to access the QPA2598 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA25,
or try a keyword search, such as RF/Microwave Amplifiers
