QPA2626 - Qorvo

Description: RF Amplifier 17-22GHz NF 1.3dB P1dB 20dBm SSG 25dB

Download QPA2626 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

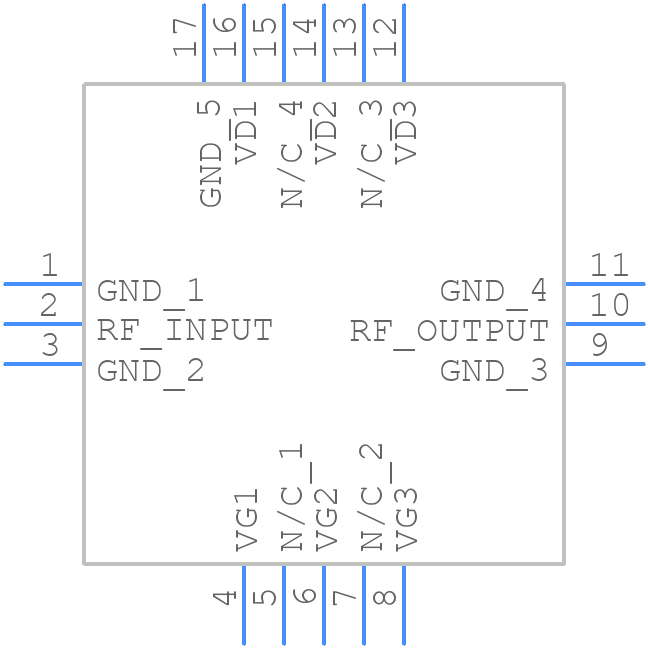

QPA2626 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPA2626 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QPA2237
click to zoom
3D Models
QPA2626 - Qorvo - 3D model - Quad Flat No-Lead - QPA2237
click to zoom

QPA2626 Details

  • Manufacturer Part Number:

    QPA2626

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.56

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    25 dB

  • Input Power-Max (CW):

    20 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    22000 MHz

  • Operating Frequency-Min:

    17000 MHz

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Power Supplies:

    3.5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.33

QPA2626 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the RF traces.
  • Use the Qorvo simulation models and design tools to optimize the device for the desired frequency band. The device's performance can be optimized by adjusting the input and output matching networks, as well as the biasing conditions.
  • The QPA2626 can handle up to 2W of input power, but the maximum power handling depends on the specific application and operating conditions. It's recommended to derate the power handling based on the device's thermal performance and the application's requirements.
  • The QPA2626 requires a bias voltage of 3.3V to 5V, and the bias current should be set to 200mA to 400mA. The biasing conditions can be adjusted based on the application's requirements, but it's recommended to follow the datasheet's guidelines for optimal performance.
  • The typical noise figure of the QPA2626 is around 1.5dB, but it can vary depending on the frequency band, biasing conditions, and operating temperature.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPA2626 Overview

Use the download button to access the QPA2626 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA26, or try a keyword search, such as RF/Microwave Amplifiers
