- Part Number QPA3069
- Manufacturer Qorvo
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPA3070
- Released Date Dec 21, 2024
- Last Modified Date Feb 27, 2025 5:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA3069 Details
-
Manufacturer Part Number:
QPA3069
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Qorvo
-
RF/Microwave Device Type:
NARROW BAND HIGH POWER
QPA3069 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
The optimal biasing of the QPA3069 depends on the specific application and operating conditions. Qorvo recommends consulting their application note AN-2171, which provides guidance on biasing and tuning the amplifier for optimal performance.
-
The maximum power handling capability of the QPA3069 is not explicitly stated in the datasheet, but it is typically limited by the device's thermal characteristics and the PCB's thermal design. Qorvo recommends consulting their application note AN-2171 for guidance on thermal design and power handling.
-
To ensure stability, Qorvo recommends following the guidelines in their application note AN-2171, which includes recommendations for component selection, PCB layout, and biasing to prevent oscillation.
-
The recommended operating temperature range for the QPA3069 is -40°C to +85°C, but the device can operate up to +105°C with reduced performance and reliability. Qorvo recommends consulting their application note AN-2171 for guidance on temperature-related performance and reliability.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA3069 Overview

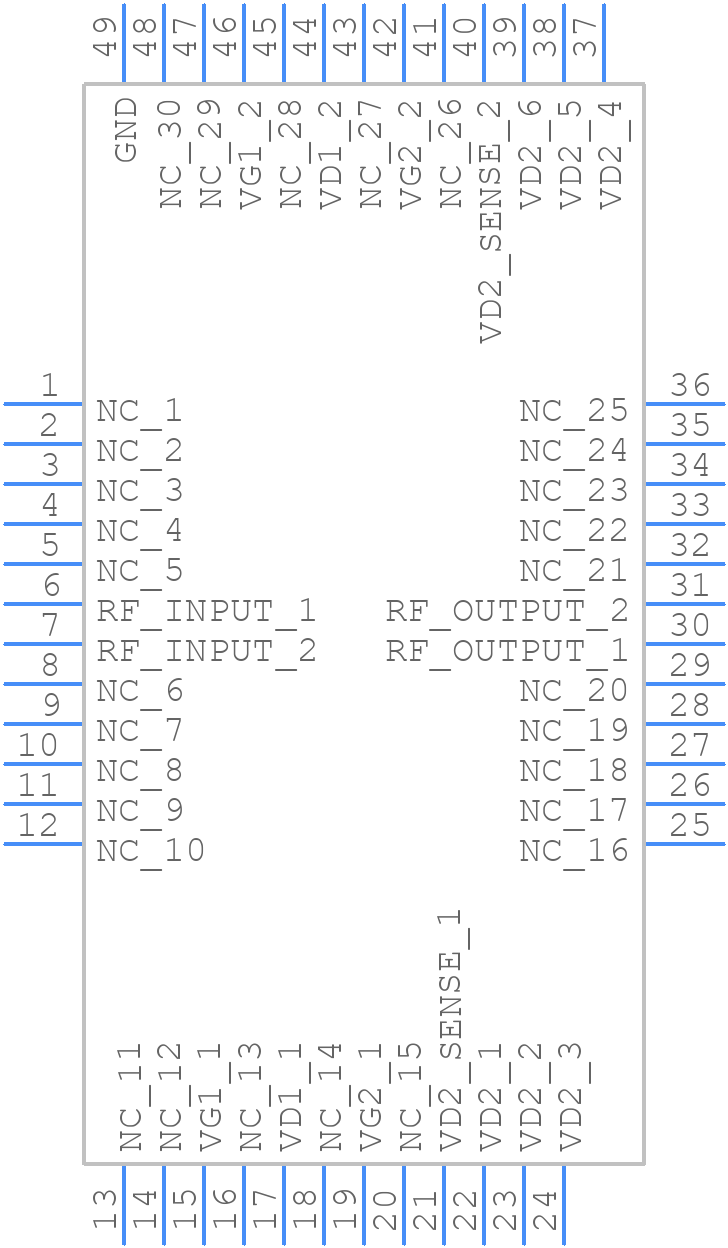

Use the download button to access the QPA3069 schematic symbol, PCB footprint, and 3D model.
