A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling.
Use a voltage regulator to provide a stable voltage supply, and ensure the bias voltage is set to the recommended 3.3V. Also, use a low-ESR capacitor to decouple the power supply.
The QPA7489ATR13 can handle up to 30 dBm of input power, but it's recommended to operate at 20 dBm or less to ensure optimal linearity and reliability.
Use a spectrum analyzer to check for spurious signals or oscillations. Verify the PCB layout and ensure that the device is properly biased and decoupled. Check for any signs of overheating or damage to the device.
Yes, the QPA7489ATR13 can be used in a push-pull configuration to improve linearity and reduce distortion. However, ensure that the devices are properly matched and biased to avoid oscillations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPA7489ATR13 Overview

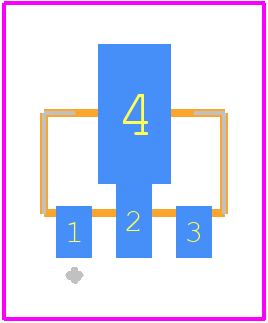

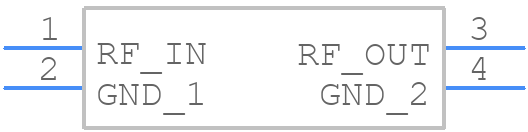

Use the download button to access the QPA7489ATR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA74,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
