QPA9120SR - Qorvo

Description: 1.8 – 5.0 GHz Operational • 50Ω Matched RF Input and Output • 1 dB Gain Flatness over 1 GHz Bandwidth • +22 dBm P1dB • +35 dBm Output IP3 • 29 dB Gain • +5 V Single Supply, IDD 96 mA • DC Power Shutdown Feature • Small 3 x 3 mm QFN Package

Download QPA9120SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

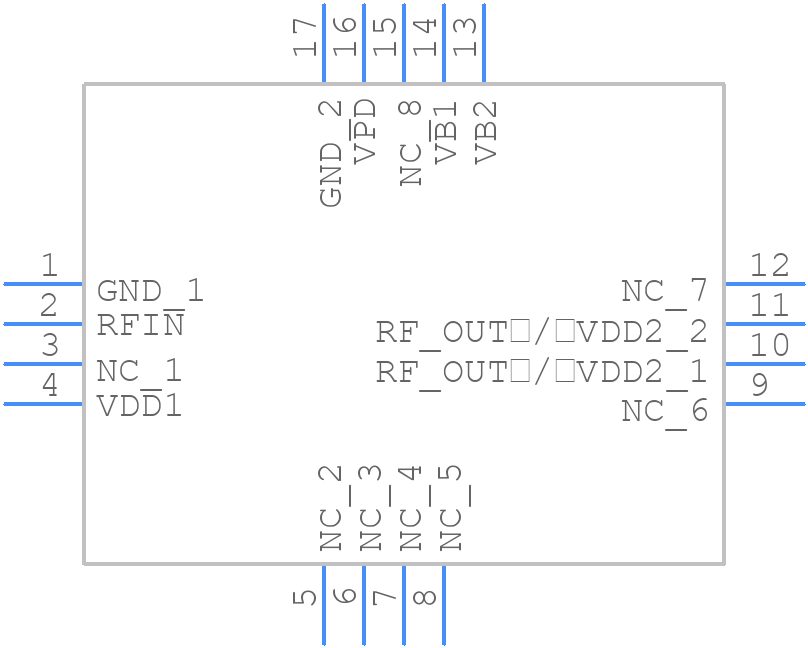

QPA9120SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPA9120SR - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-QFN.
click to zoom
3D Models
QPA9120SR - Qorvo - 3D model - Quad Flat No-Lead - 16-QFN.
click to zoom

QPA9120SR Details

  • Manufacturer Part Number:

    QPA9120SR

  • Manufacturer:

    Qorvo

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPA9120SR Overview

Use the download button to access the QPA9120SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA91, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
