- Part Number QPA9121TR7
- Manufacturer Qorvo
- Pin Count 17
- Part Category Diode ESD (Uni-directional)
- Package Category Other
- Footprint Name Other - QPA9121TR7-1
- Released Date Nov 6, 2021
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA9121TR7 Details
-
Manufacturer Part Number:
QPA9121TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7.01
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
24 dB
-
Input Power-Max (CW):
10 dBm
QPA9121TR7 Frequently Asked Questions (FAQs)
-
Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Qorvo provides a reference design and application notes to help with this process.
-
Use a reflow soldering process with a peak temperature of 260°C. Ensure the package is properly aligned and secured to the PCB during assembly. Follow Qorvo's recommended assembly and soldering guidelines.
-
Use a combination of visual inspection, signal integrity analysis, and functional testing to identify and isolate issues. Qorvo provides application notes and technical support to help with troubleshooting.
-
The QPA9121TR7 has undergone rigorous qualification tests, including temperature cycling, humidity testing, and electrical stress testing, to ensure its reliability and performance in harsh environments.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA9121TR7 Overview

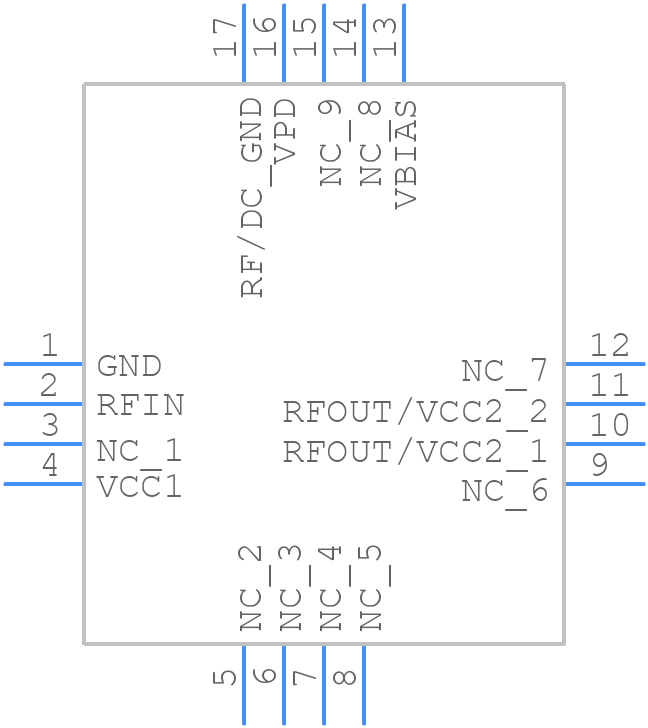

Use the download button to access the QPA9121TR7 schematic symbol, PCB footprint, and 3D model.
