QPA9122TR7 - Qorvo

Description: 2.3 - 5.0 GHz, 0.5 Watt Driver Amplifier RF Amplifier IC 5G, FDD, TDD 2.3GHz ~ 5GHz 16-SMT (3x3)

Download QPA9122TR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

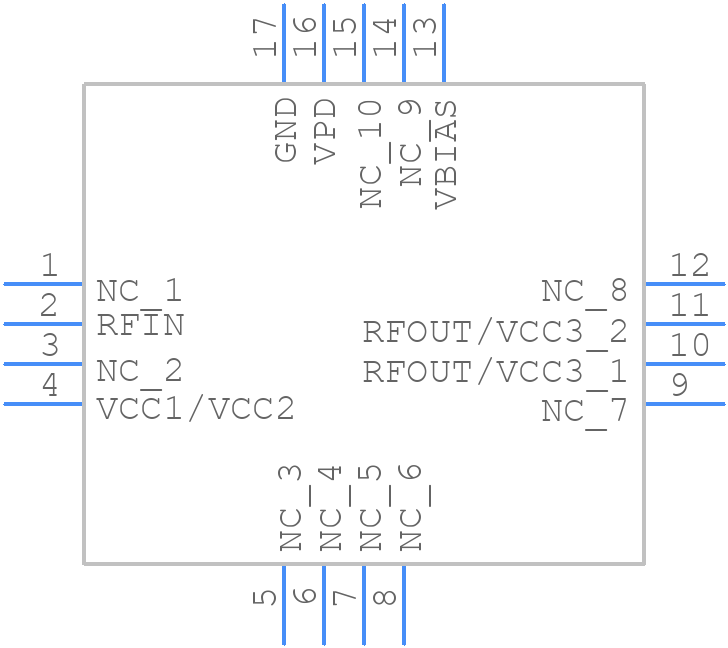

Symbol
QPA9122TR7 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPA9122TR7 - Qorvo PCB footprint - Other - Other - 16-VFQFN_2024
click to zoom
3D Models
QPA9122TR7 - Qorvo - 3D model - Other - 16-VFQFN_2024
click to zoom

QPA9122TR7 Details

  • Manufacturer Part Number:

    QPA9122TR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B

  • HTS Code:

    8517.62.00.90

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.26

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    34 dB

  • Input Power-Max (CW):

    10 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    5000 MHz

  • Operating Frequency-Min:

    2300 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    125 mA

  • Surface Mount:

    YES

  • VSWR-Max:

    2

QPA9122TR7 Frequently Asked Questions (FAQs)

  • Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Qorvo provides a reference design and application notes to help with this process.
  • Use a reflow soldering process with a peak temperature of 260°C. Ensure the device is handled and stored in an ESD-safe environment. Follow Qorvo's recommended assembly and soldering guidelines for optimal results.
  • Use a combination of visual inspection, signal integrity analysis, and debugging tools such as oscilloscopes and spectrum analyzers. Qorvo provides application notes and technical support to help with troubleshooting and debugging.
  • Qorvo performs a range of reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing, to ensure the device meets industry standards and customer requirements.
