A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a 50-ohm microstrip line for the RF input and output.
Use a voltage regulator to set the VCC voltage to 3.3V. Adjust the bias resistors (R1 and R2) to set the quiescent current (IQ) to around 100mA. Monitor the device temperature and adjust the bias accordingly.
The maximum input power is 10 dBm. Exceeding this may cause compression and distortion. Use an attenuator or a limiter to prevent damage.
Use a spectrum analyzer to check the output spectrum for spurs, harmonics, or other anomalies. Verify the bias voltage and current. Check the PCB layout for any defects or shorts. Consult the datasheet and application notes for troubleshooting guides.
Yes, the QPA9501TR13 can be used in a push-pull configuration to improve linearity and reduce distortion. However, this requires careful design and layout to ensure proper balancing and matching.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPA9501TR13 Overview

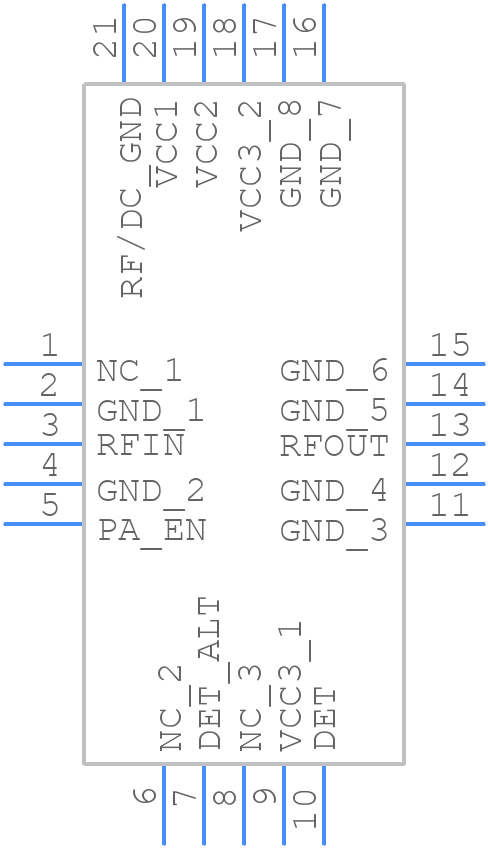

Use the download button to access the QPA9501TR13 schematic symbol, PCB footprint, and 3D model.
