Part Image

QPA9510SB - Qorvo

Description: 100 – 1000 MHz Operating Frequency Range +2.8 to +3.6V Single Supply 34 dB Max Gain with Analog Gain Control 55% Efficiency Achieves +35 dBm P1dB Supports GSM and E-GSM 3 x 3 mm QFN Package

Download QPA9510SB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

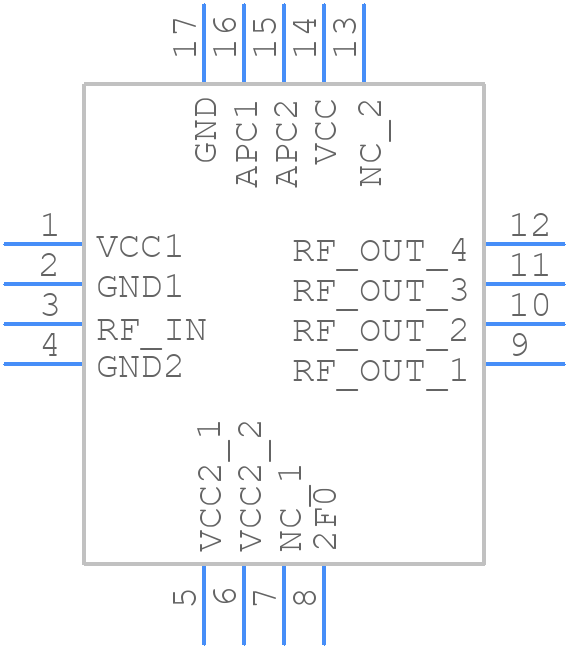

QPA9510SB - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPA9510SB - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3 x 3 mm QFN
click to zoom
3D Models
QPA9510SB - Qorvo - 3D model - Quad Flat No-Lead - 3 x 3 mm QFN
click to zoom

QPA9510SB Details

  • Manufacturer Part Number:

    QPA9510SB

  • Manufacturer:

    Qorvo

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPA9510SB Overview

Use the download button to access the QPA9510SB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA95, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
