Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize parasitic inductance and ensure optimal performance.
The QPA9801TR13 requires a specific biasing scheme to achieve optimal linearity and gain. Qorvo recommends using a voltage-controlled current source to bias the amplifier, with a typical bias voltage of 3.3V and a bias current of 40mA. Refer to the application note AN-2171 for more details.
The QPA9801TR13 is rated for operation from -40°C to +85°C, but Qorvo recommends derating the device for reliable operation above +70°C. Consult the datasheet for more information on temperature derating.
The QPA9801TR13 is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends using ESD-safe handling procedures, such as wrist straps and anti-static mats, and incorporating ESD protection devices, such as TVS diodes, into the PCB design.
Qorvo recommends a peak reflow temperature of 260°C for the QPA9801TR13, with a recommended soldering profile of 3°C/sec ramp-up, 30-second dwell time, and 6°C/sec ramp-down. Consult the datasheet for more information on soldering guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPA9801TR13 Overview

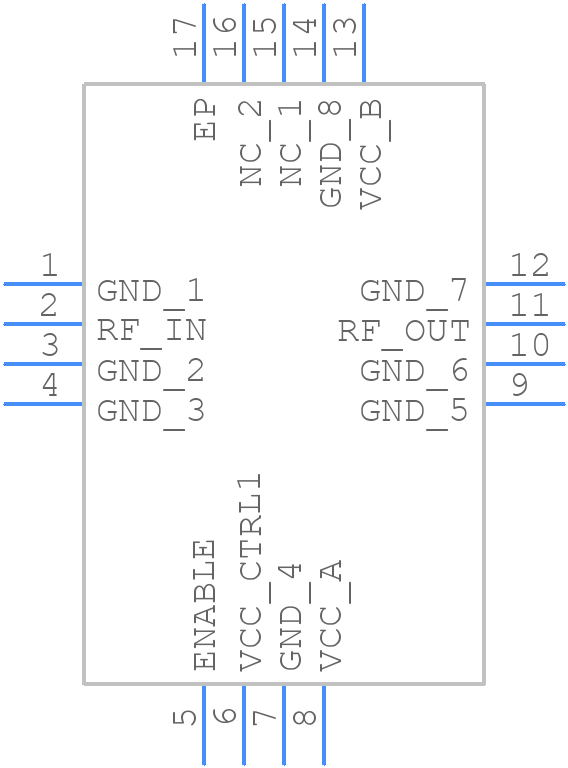

Use the download button to access the QPA9801TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA98,
or try a keyword search, such as RF/Microwave Amplifiers
