Description: 5 MHz to 700 MHz Operation
5 V Operation
High Gain: 25 dB Typical
Low Noise Figure:
o 1.1dB for Upstream Splits Through 492MHz
o 1.8dB for 684MHz
SOIC-8 Exposed Pad
Qorvo provides a reference design guide for the QPB8896TR13, which includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
Qorvo offers application notes and design tools, such as the Qorvo GaN Design Hub, to help optimize biasing and matching networks for specific applications. Engineers can also consult with Qorvo's technical support team for customized guidance.
Qorvo performs a range of reliability and ruggedness tests on the QPB8896TR13, including temperature cycling, humidity testing, and mechanical stress testing. These tests ensure the device meets or exceeds industry standards for reliability and ruggedness.
Yes, the QPB8896TR13 can be used in non-50 ohm systems. Qorvo provides guidance on impedance matching and can also offer custom impedance matching solutions. Engineers should consult the datasheet and application notes for more information.
The maximum operating temperature range for the QPB8896TR13 is -40°C to 85°C. Operating the device outside this range can affect its performance, reliability, and lifespan. Engineers should ensure proper thermal management and consider derating the device's performance at higher temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPB8896TR13 Overview

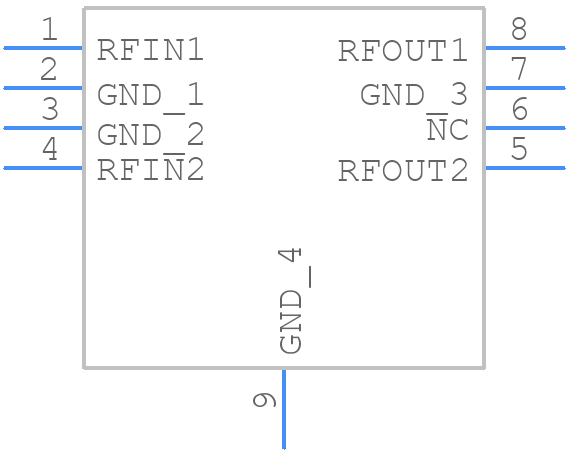

Use the download button to access the QPB8896TR13 schematic symbol, PCB footprint, and 3D model.
