Part Image

QPB9015TR7 - Qorvo

Description: - RF Receiver 45MHz ~ 1.218GHz Not Included 28-MCM (11x11) , 300mA , 4.5V ~ 5.5V , -40°C ~ 85°C

Download QPB9015TR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

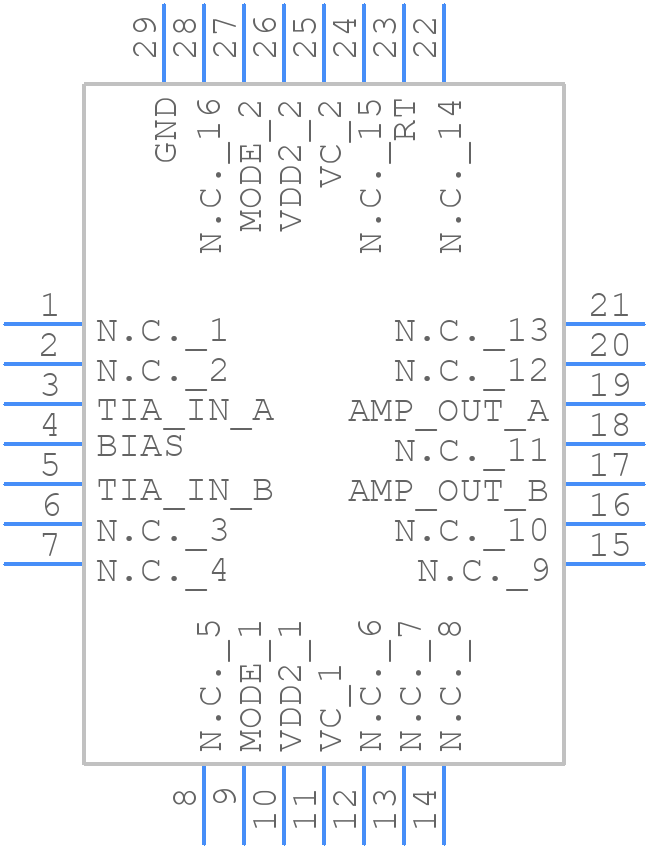

QPB9015TR7 - Qorvo - PCB symbol
click to zoom
PCB Footprints

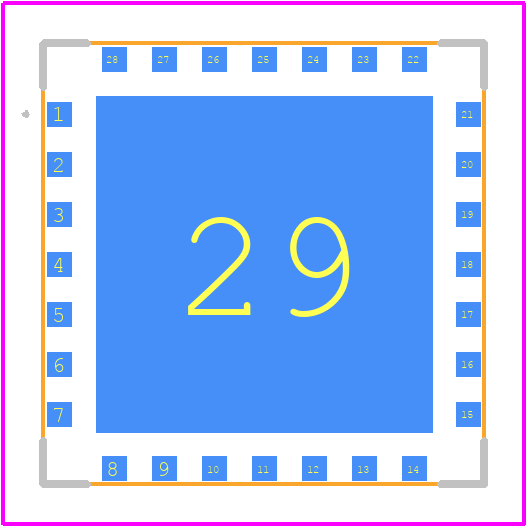

QPB9015TR7 - Qorvo PCB footprint - Other - Other - 28 pin, 11.0 mm x 11.0 mm x 1.375 mm_2024-2
click to zoom
3D Models
QPB9015TR7 - Qorvo - 3D model - Other - 28 pin, 11.0 mm x 11.0 mm x 1.375 mm_2024-2
click to zoom

QPB9015TR7 Details

  • Manufacturer Part Number:

    QPB9015TR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPB9015TR7 Overview

Use the download button to access the QPB9015TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPB90, or try a keyword search, such as Other Consumer ICs

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
