- Part Number QPC1005
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RF6886TR13-
- Released Date Aug 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC1005 Details
-
Manufacturer Part Number:
QPC1005
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-24
-
ECCN Code:
EAR99
-
HTS Code:
9030.82.00.00
-
Manufacturer:
Qorvo
-
YTEOL:
6
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
47.78 dBm
QPC1005 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
The biasing network depends on the specific application and frequency range. Qorvo provides a biasing network design guide in their application note AN-2172, which includes examples and calculations to help engineers choose the correct components and values.
-
The maximum power handling capability of the QPC1005 is not explicitly stated in the datasheet, but it is typically limited by the device's thermal characteristics. Qorvo recommends following the power handling guidelines in their application note AN-2173 to ensure reliable operation.
-
Qorvo provides a troubleshooting guide in their application note AN-2174, which includes common issues, symptoms, and solutions to help engineers quickly identify and resolve problems with the QPC1005.
-
Yes, the QPC1005 is a sensitive device and requires proper ESD handling precautions to prevent damage. Qorvo recommends following the ESD handling guidelines in their application note AN-2175, which includes information on handling, storage, and assembly procedures.
Trust Checks
Community Provided
System Verified
Community Approved
QPC1005 Overview

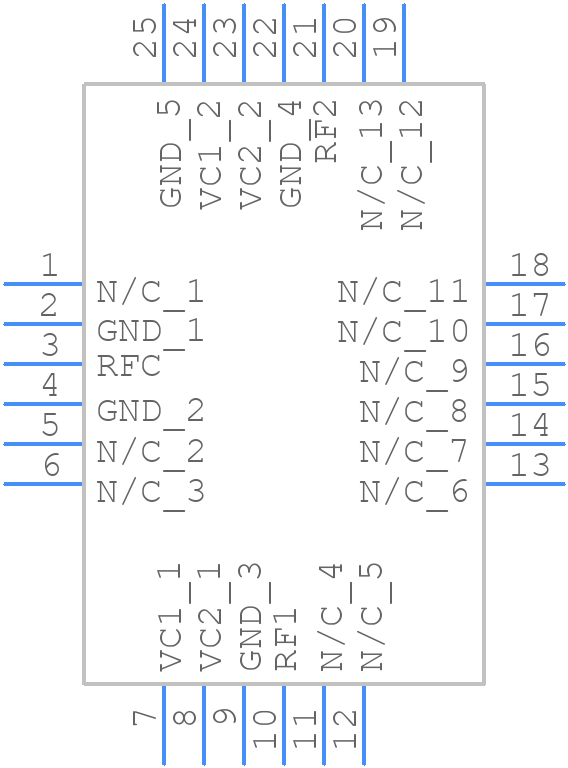

Use the download button to access the QPC1005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC10,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
