QPC1022SR - Qorvo

Description: RF Switch ICs 5-6000MHz SPDT IL .25dB Iso 39dB

Download QPC1022SR Model

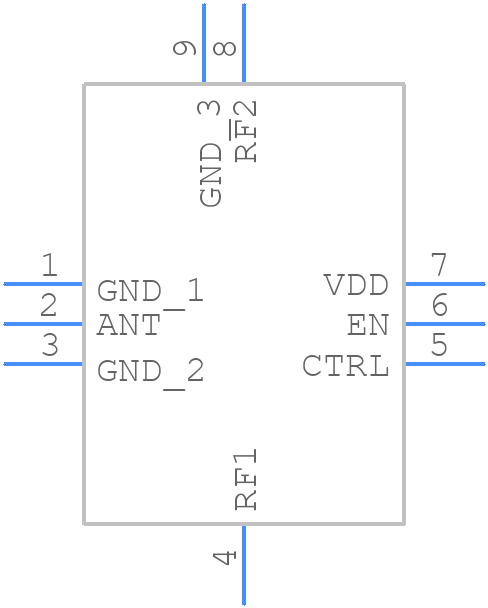

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPC1022SR - Qorvo PCB footprint - Other - Other - QPC1022SR-1
click to zoom
3D Models
QPC1022SR - Qorvo  - 3D model - Other - QPC1022SR-1
click to zoom

QPC1022SR Details

  • Manufacturer Part Number:

    QPC1022SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    0.4 dB

  • Isolation-Min:

    32 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • On Time-Nom:

    5 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.1 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.06

QPC1022SR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the transmission lines. A via-stitched ground plane is also recommended to reduce electromagnetic interference (EMI).
  • The QPC1022SR requires a bias voltage of 3.3V to 5V. To optimize biasing for maximum linearity, it is recommended to use a voltage regulator with a low dropout voltage and a high power supply rejection ratio (PSRR). Additionally, a 10uF capacitor should be placed between the bias pin and ground to filter out noise.
  • The QPC1022SR is designed to operate up to 6 GHz, but the maximum operating frequency may vary depending on the specific application and PCB layout. It is recommended to perform simulations and testing to determine the maximum operating frequency for a specific design.
  • To reduce the noise figure of the QPC1022SR, it is recommended to use a high-quality, low-noise voltage regulator and to minimize the length of the transmission lines. Additionally, a 10nF capacitor should be placed between the input and ground to filter out noise. Shielding the device and using a ground plane can also help to reduce noise.
  • The QPC1022SR is designed to handle up to 23 dBm of input power. However, the maximum power handling may vary depending on the specific application and operating conditions. It is recommended to perform testing to determine the maximum power handling for a specific design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPC1022SR Overview

Use the download button to access the QPC1022SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC10, or try a keyword search, such as RF/Microwave Switches

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
