- Part Number QPC1022TR7
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QPC1022SB-2
- Released Date Sep 7, 2021
- Last Modified Date Feb 27, 2025 6:38 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC1022TR7 Details
-
Manufacturer Part Number:
QPC1022TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7.7
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
33 dBm
QPC1022TR7 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
-
Use a combination of simulation tools and empirical methods to optimize the matching network. Consider using a pi-network or a T-network topology, and adjust the component values to achieve the best impedance match.
-
The QPC1022TR7 is rated for operation from -40°C to 85°C. However, for reliable operation, it's recommended to keep the junction temperature below 125°C to prevent thermal degradation.
-
Use a combination of resistive and reactive components to ensure stability. Add a stabilizing resistor in series with the input, and consider adding a feedback capacitor to reduce the gain at high frequencies.
-
The recommended input impedance is 50 ohms, and the output impedance is typically 50 ohms or lower. Ensure that the input and output impedance are well-matched to achieve maximum power transfer.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPC1022TR7 Overview

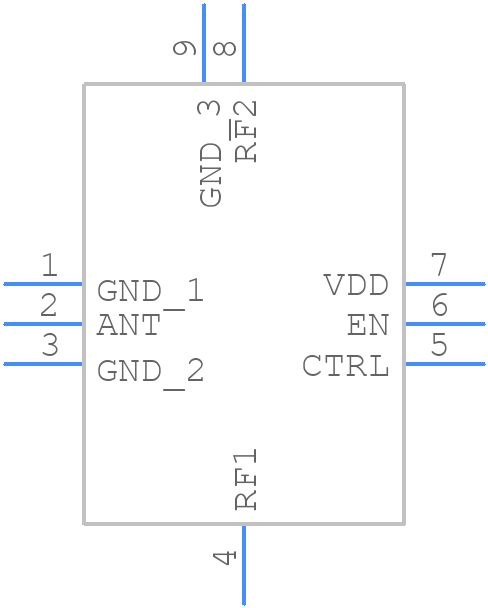

Use the download button to access the QPC1022TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC10,
or try a keyword search, such as RF/Microwave Switches
