Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
The QPC1217QSR requires a specific biasing scheme to achieve optimal linearity and gain. Qorvo recommends using a voltage-controlled current source (VCCS) to bias the device, with a recommended bias voltage of 3.3V and a bias current of 20mA.
The QPC1217QSR is rated for operation from -40°C to +85°C, but Qorvo recommends derating the device for temperatures above +70°C to ensure reliable operation and minimize thermal stress.
Qorvo recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins of the QPC1217QSR to protect against electrostatic discharge. Additionally, proper handling and storage procedures should be followed to prevent ESD damage.
Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering the QPC1217QSR, with a peak temperature of 260°C and a dwell time of 30 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPC1217QSR Overview

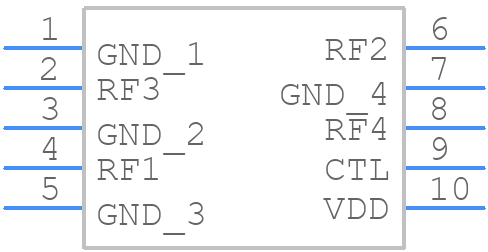

Use the download button to access the QPC1217QSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC12,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
